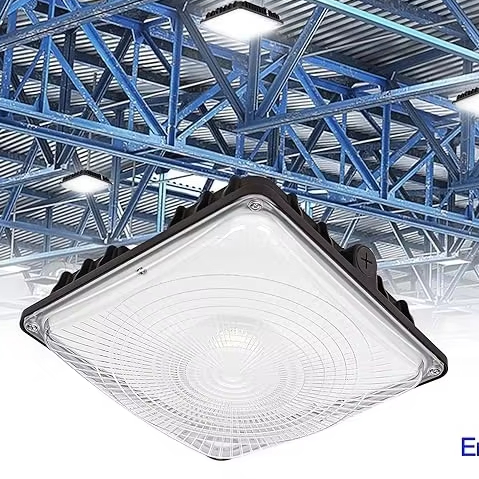

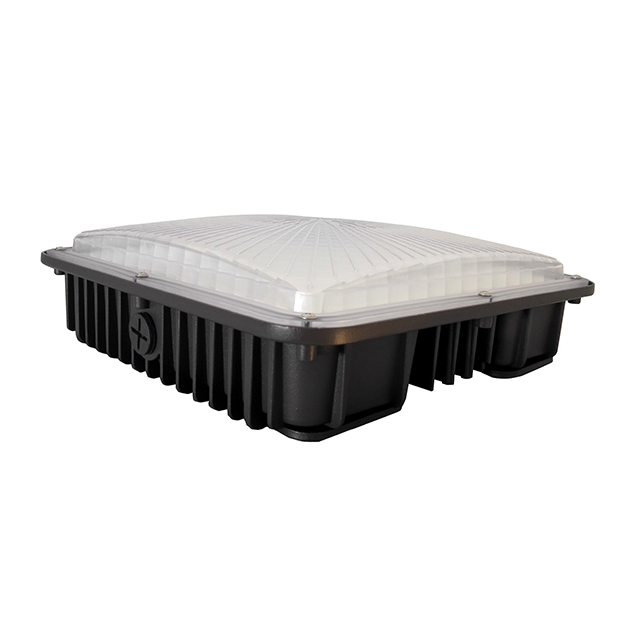

IP65 Waterproof Ceiling Installation Parking Garage Lights 100w Led Canopy Lights for Gas Station

Product Description

Products Description
Product Image
Features
  • High brightness SMD >120lm/W, 2835 SMD
  • Isolated constant current led driver, the light work stably
  • CCT: Warm white 2700, 3000K; Pure white 4000-4500K; Cool white 6000-6500K
  • Pf>0.95 CRI≥80
  • Beam angle: 120degree
  • Input Voltage: AC 100-277V/50-60Hz
Product details

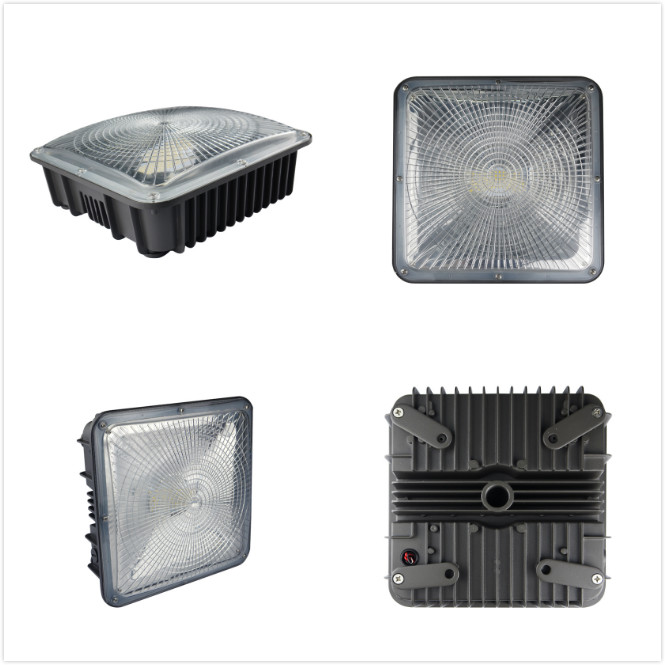

Product detail image 1

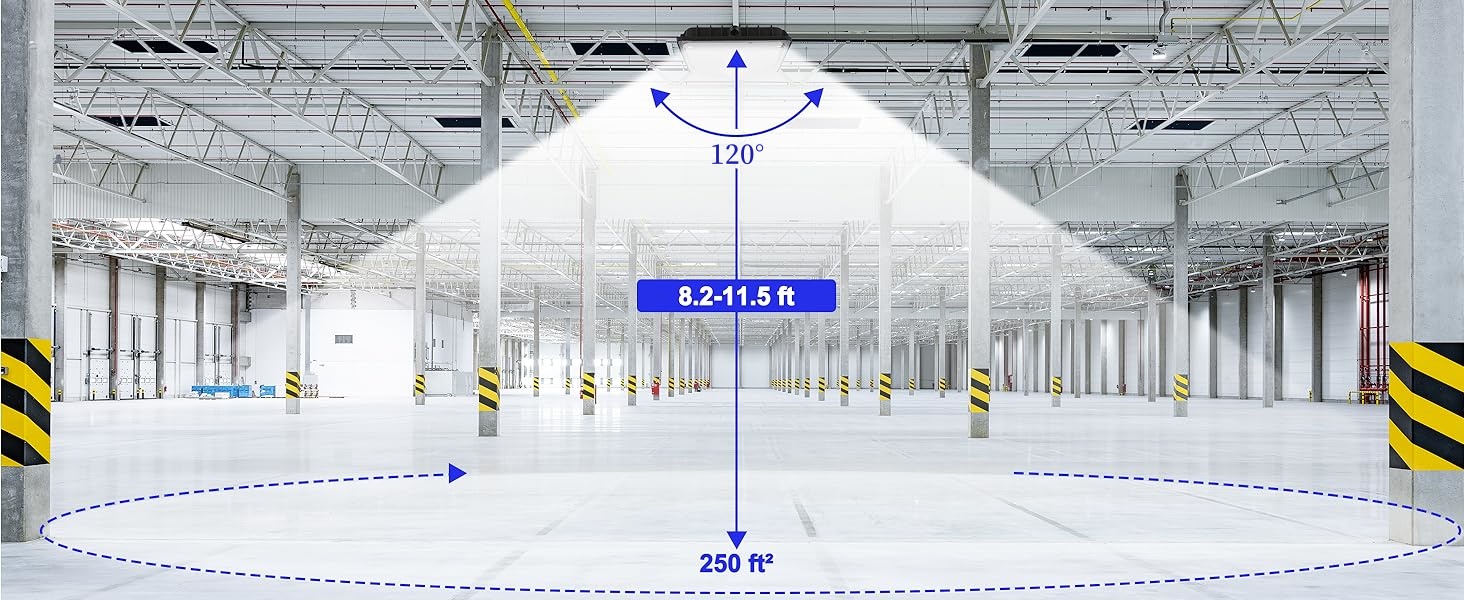

Product detail image 2
Model No. CH-CANOPY-W50-S3 CH-CANOPY-W75-S3 CH-CANOPY-W100-S3 CH-CANOPY-W120-S3
Power 50w 75w 100w 120w
Input voltage AC 100-277V
LED source SMD2835
Lumen output 5000 7500 10000 12000
Dimension 245x245x84MM
Color temperature 2700-6500K
CRI Ra>80
Power factor >0.95
Working temperature -20+45°C
Beam angle 120°
IP rating IP65 waterproof
Warranty 5 years
Lifespan 50000hrs
Certification ETL, CE, ROHS

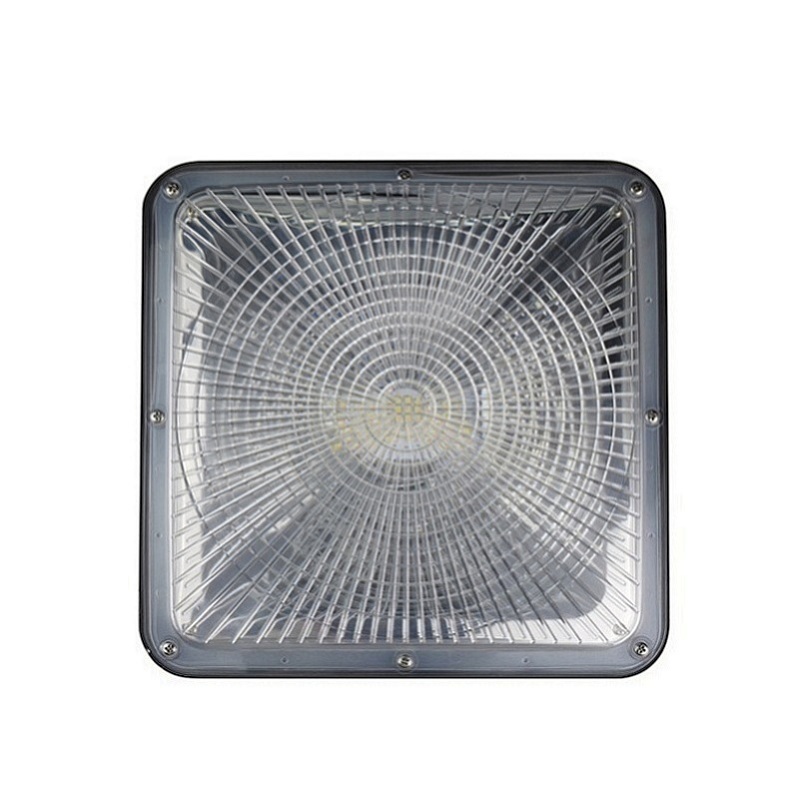

Details view 1

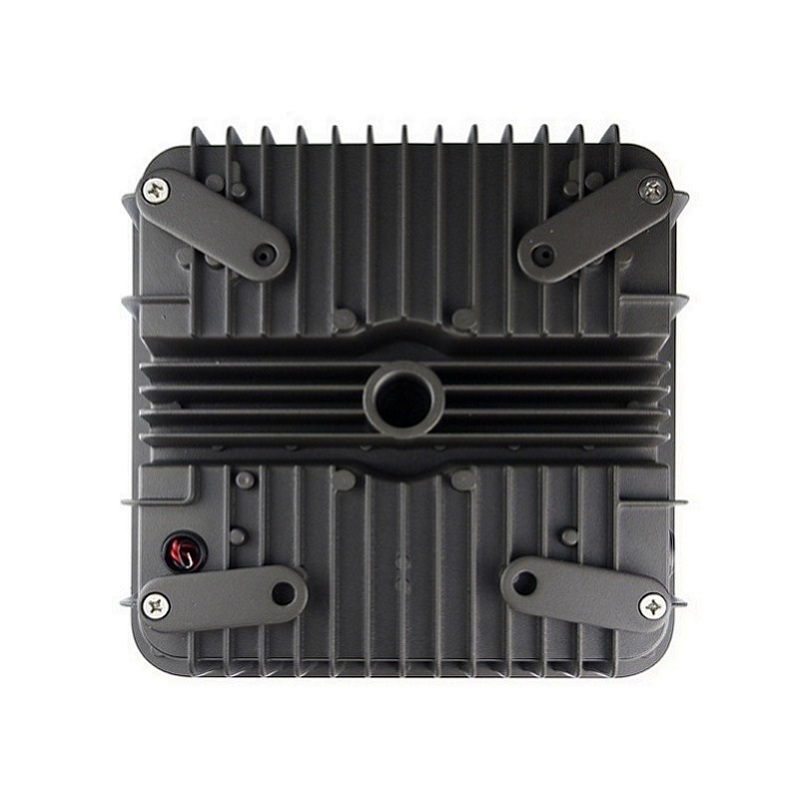

Details view 2

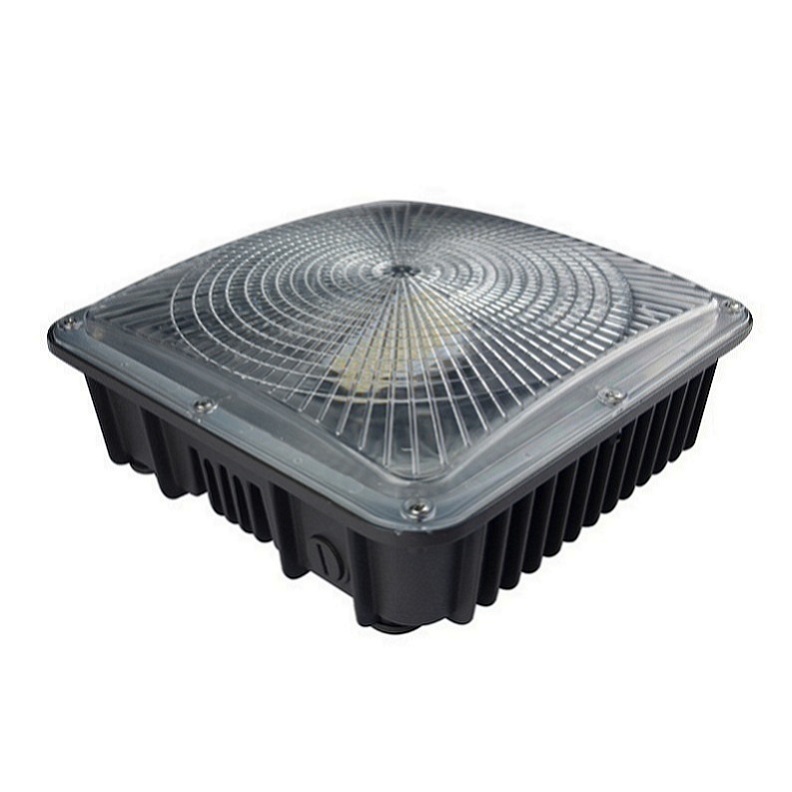

Details view 3

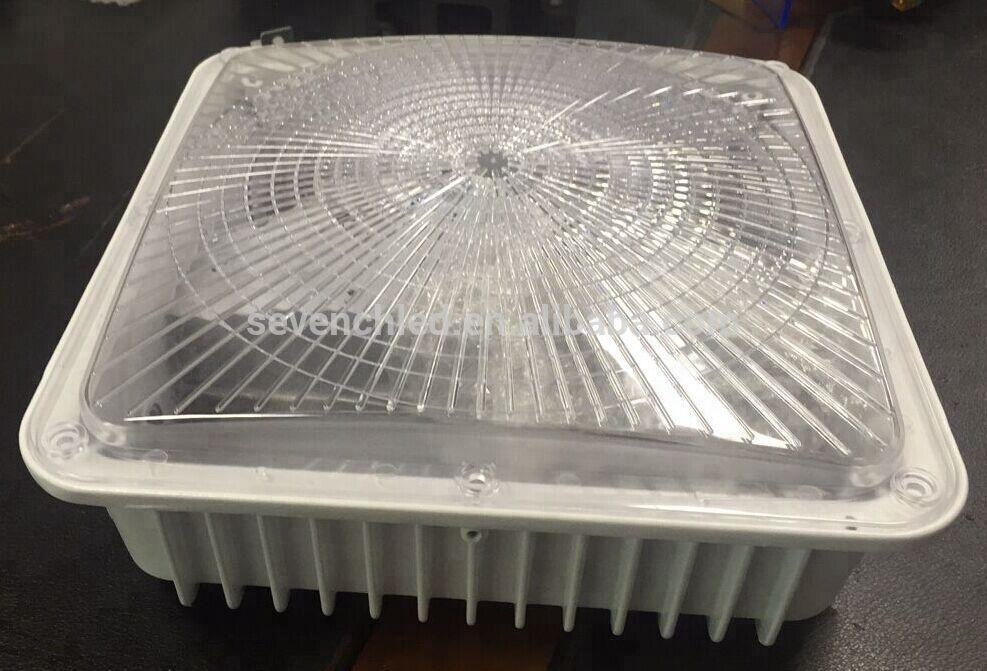

Details view 4

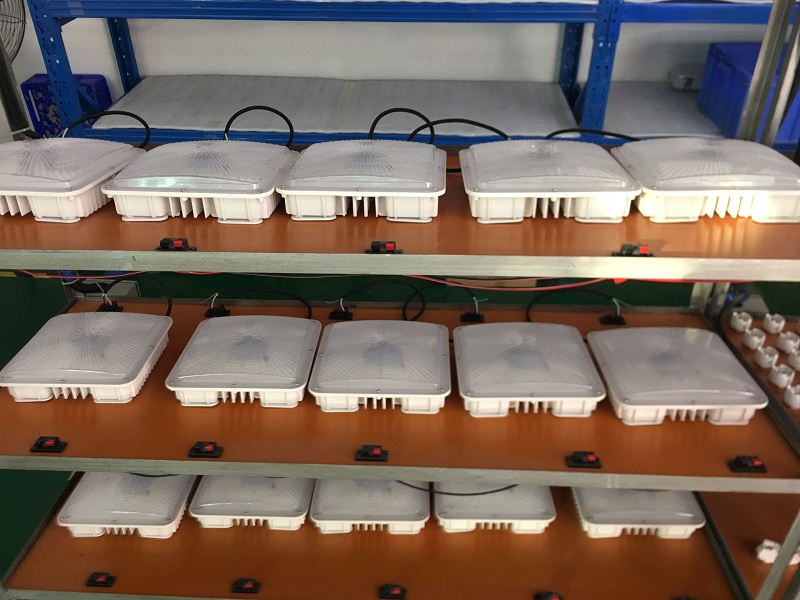

Details view 5

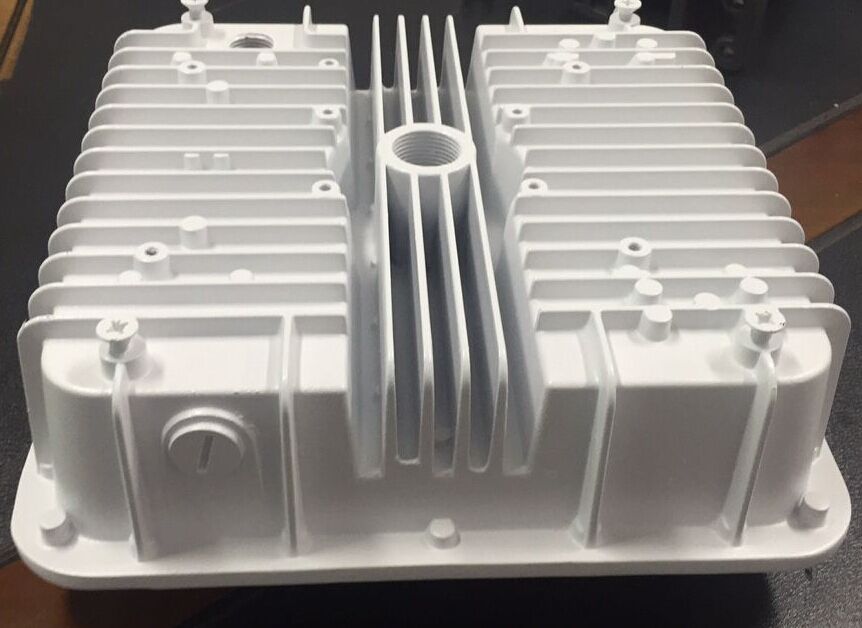

Details view 6

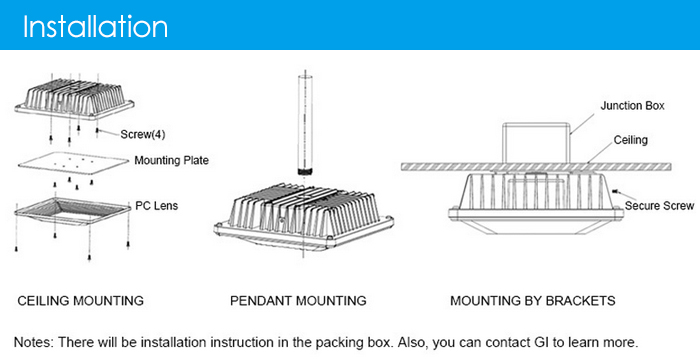

Details view 7

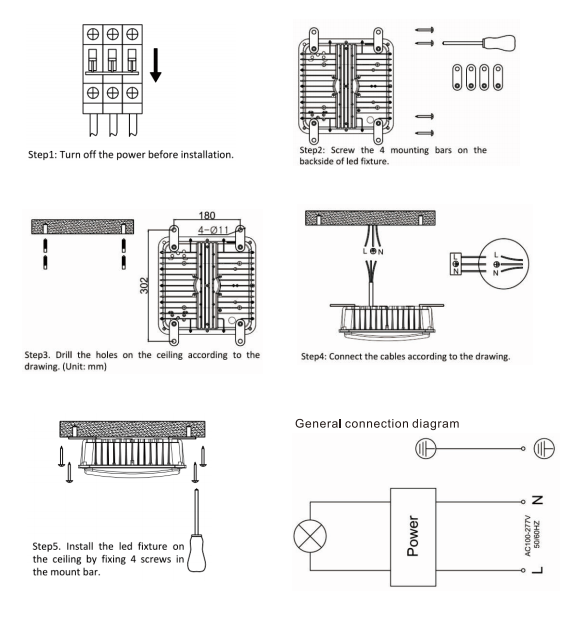

Details view 8

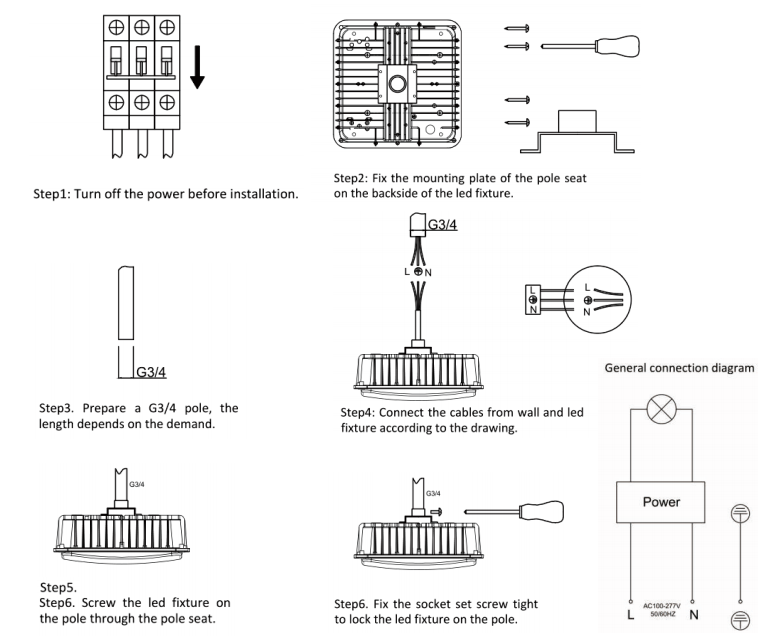

Details view 9
Application

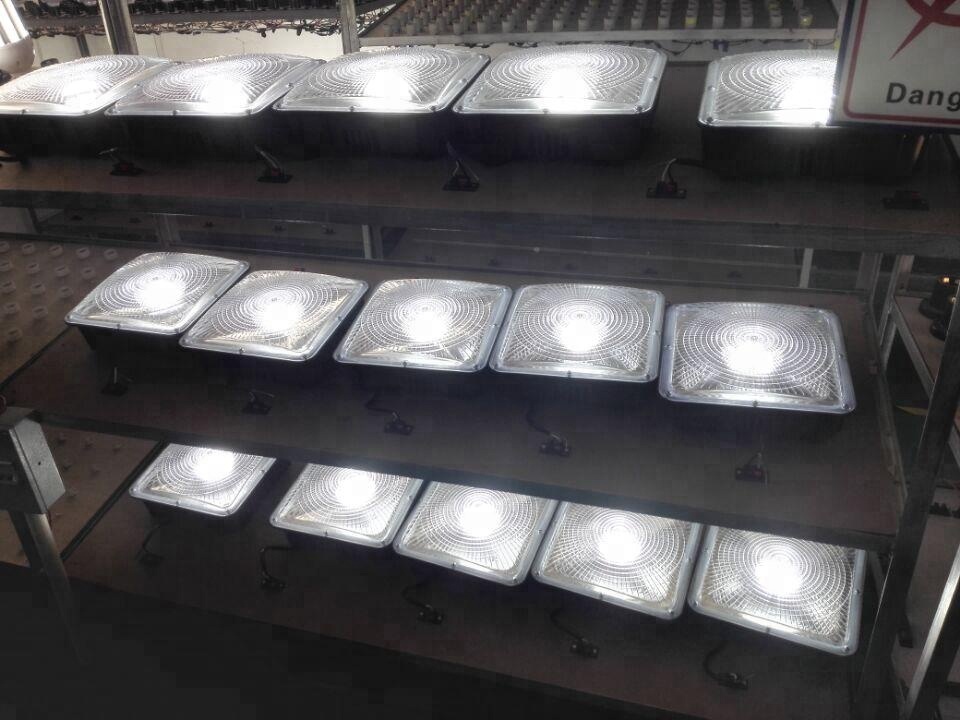

Application Image
You can used at square, billboard, parking lot, garden, building, factory, warehouse, stadium,gas station etc.

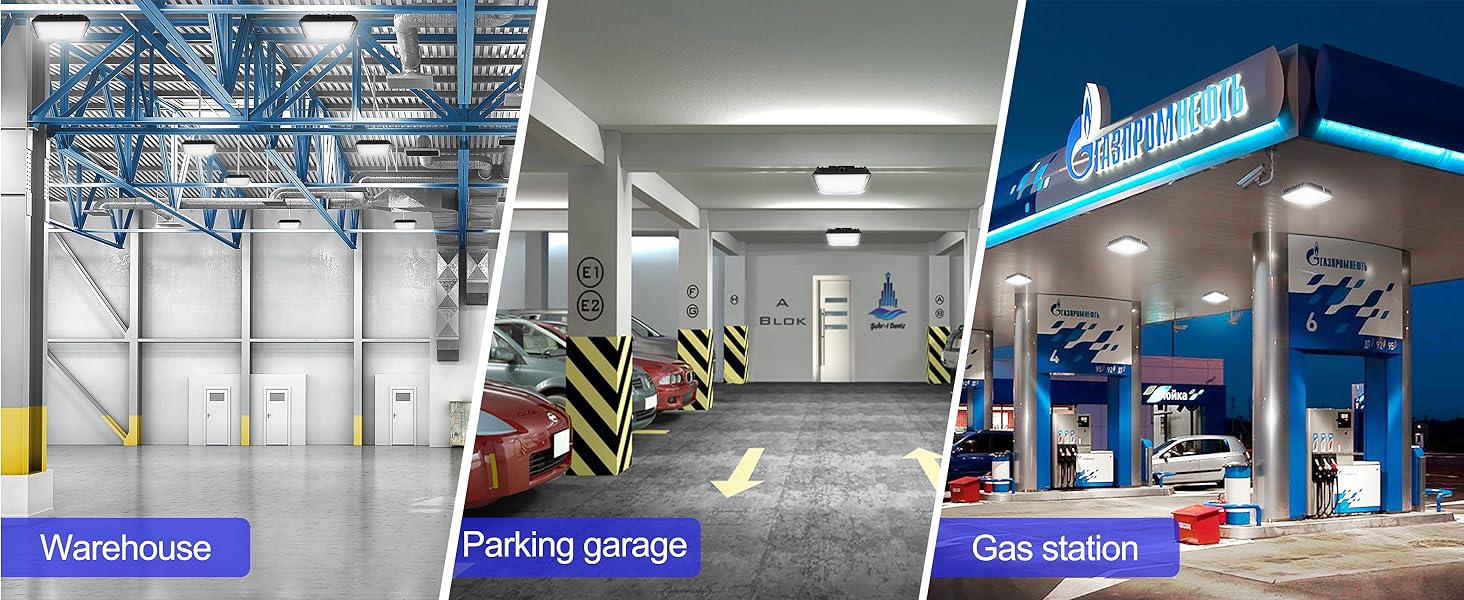

Application 1

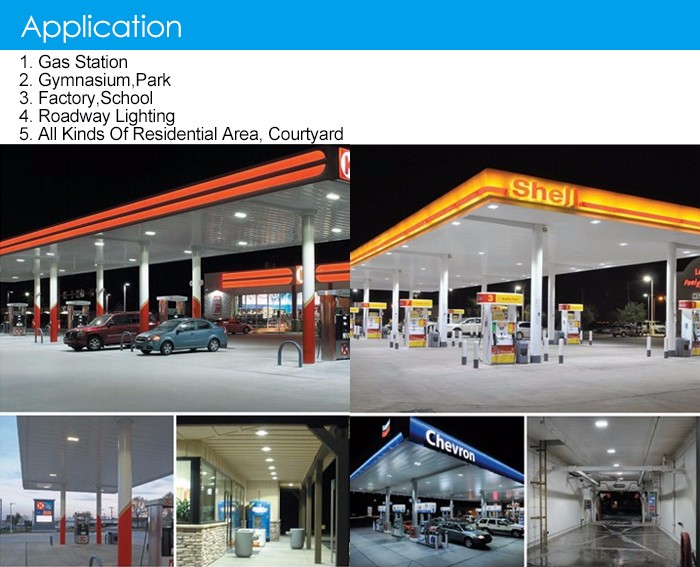

Application 2
Application 3
Application 4
Application 5
Products Description
Product Image
Features
  • High brightness SMD >100lm/W, 3030 SMD
  • Isolated constant current led driver, the light work stably
  • CCT: Warm white 2700, 3000K; Pure white 4000-4500K; Cool white 6000-6500K
  • Pf>0.95 CRI≥80
  • Beam angle: 120degree
  • Input Voltage: AC 100-277V/50-60Hz
Product details
Product detail image 1
Product detail image 2
Model No. CH-CANOPY-W50-S3 CH-CANOPY-W75-S3 CH-CANOPY-W100-S3 CH-CANOPY-W120-S3
Power 50w 75w 100w 120w
Input voltage AC 100-277V
LED source SMD3030
Lumen output 5000 7500 10000 12000
Dimension 265x265x84MM
Color temperature 2700-6500K
CRI Ra>80
Power factor >0.95
Working temperature -20+45°C
Beam angle 120°
IP rating IP65 waterproof
Warranty 5 years
Lifespan 50000hrs
Certification ETL, DLC, CE, ROHS
Details view 1
Details view 2
Details view 3
Details view 4
Details view 5
Details view 6
Details view 7
Details view 8
Details view 9
Application
Application Image
You can used at square, billboard, parking lot, garden, building, factory, warehouse, stadium,gas station etc.
Application 1
Application 2
Application 3
Application 4
Application 5
Frequently Asked Questions
What are the primary applications for these LED Canopy Lights?
These LED canopy lights are versatile outdoor and indoor fixtures widely utilized in gas stations, parking lots, squares, billboards, gardens, buildings, factories, warehouses, and stadiums.
What is the difference between the SMD2835 and SMD3030 LED models?
The SMD2835 LED model provides high brightness efficiency of >120lm/W with a layout dimension of 245x245x84MM. The SMD3030 model offers >100lm/W with slightly larger layout dimensions of 265x265x84MM.
Are these LED canopy lights waterproof and dustproof for outdoor environments?
Yes, both LED canopy light variants feature an IP65 waterproof rating, ensuring complete protection against dust ingress and resistance to high-pressure water jets, making them ideal for all weather conditions.
What is the operational lifespan and warranty for these lights?
These premium canopy lights boast a lifespan of up to 50,000 hours and come backed with a comprehensive 5-year warranty to guarantee stable, long-term performance.
What is the working temperature range for these fixtures?
They are designed to operate safely and efficiently under extreme temperatures ranging from -20°C to +45°C.
What standard certifications do these canopy lights carry?
Our LED canopy lights are certified under rigorous global standards, holding ETL, DLC, CE, and RoHS certifications, validating their electrical safety and environmentally-friendly design.
