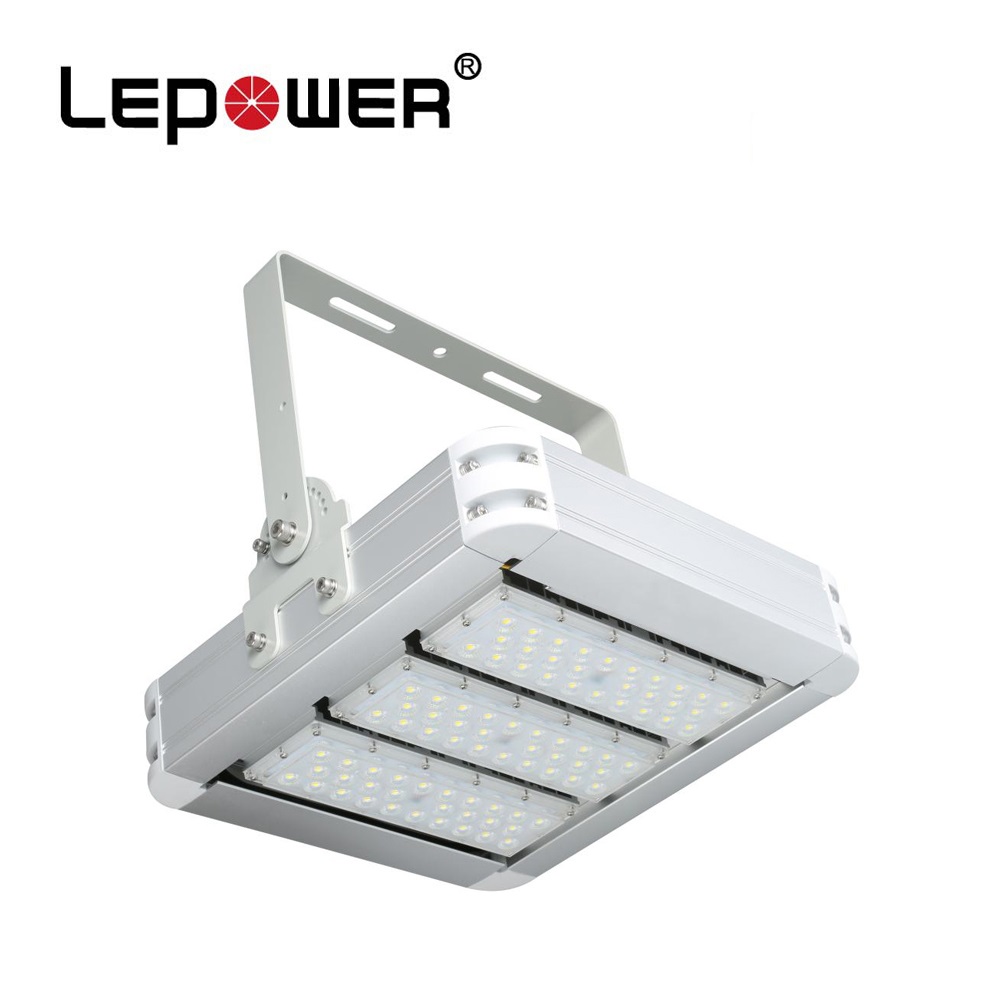

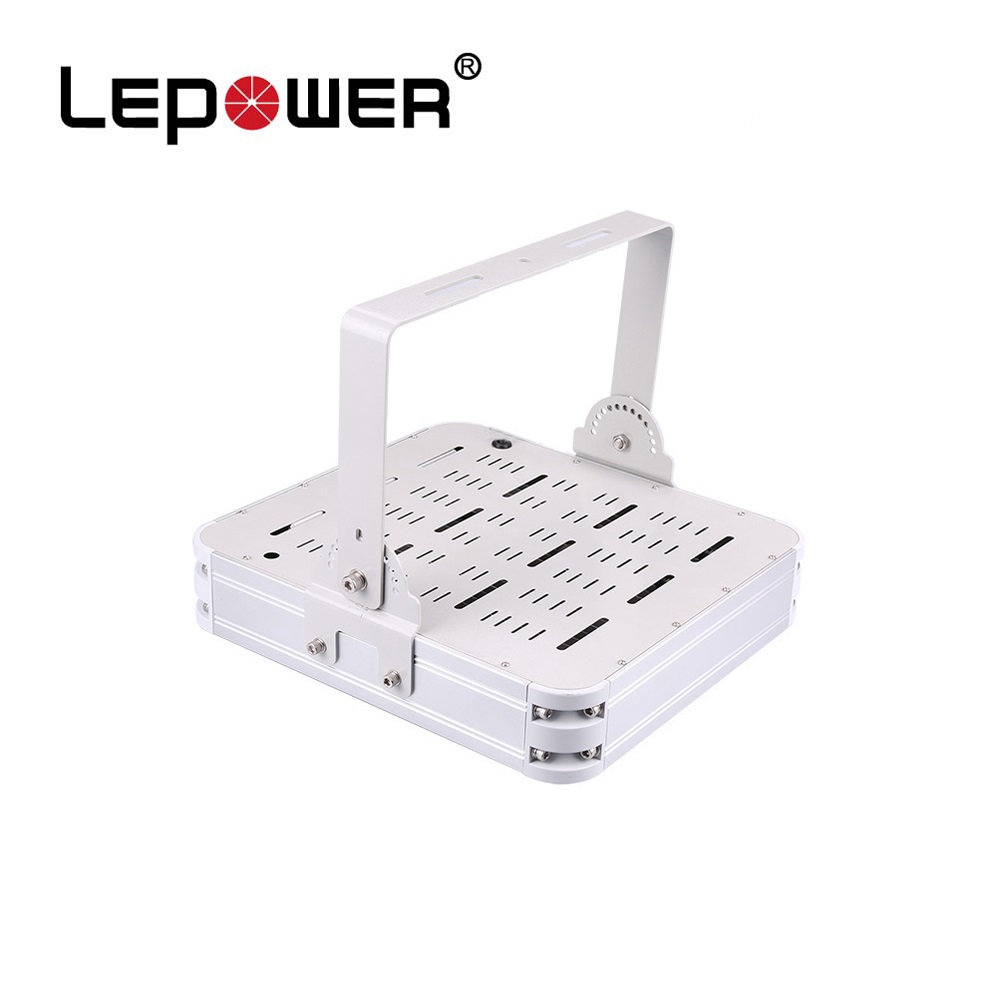

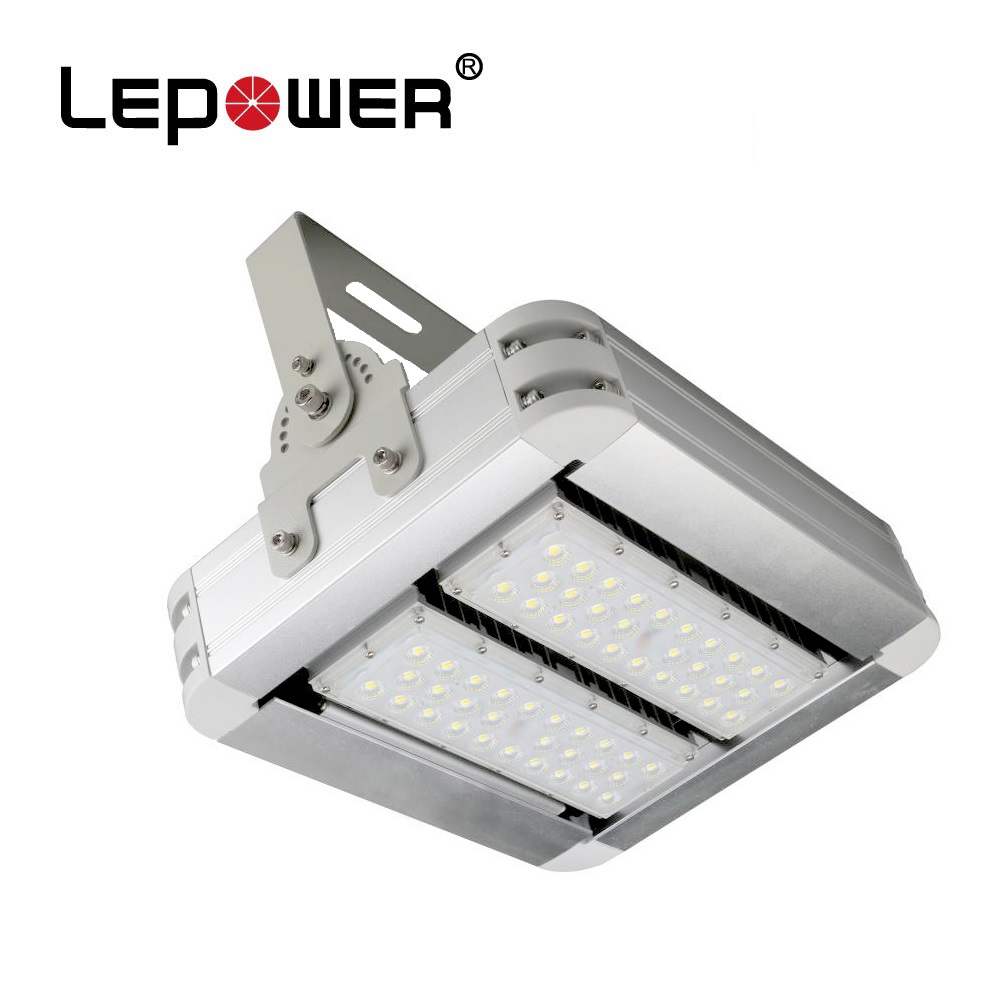

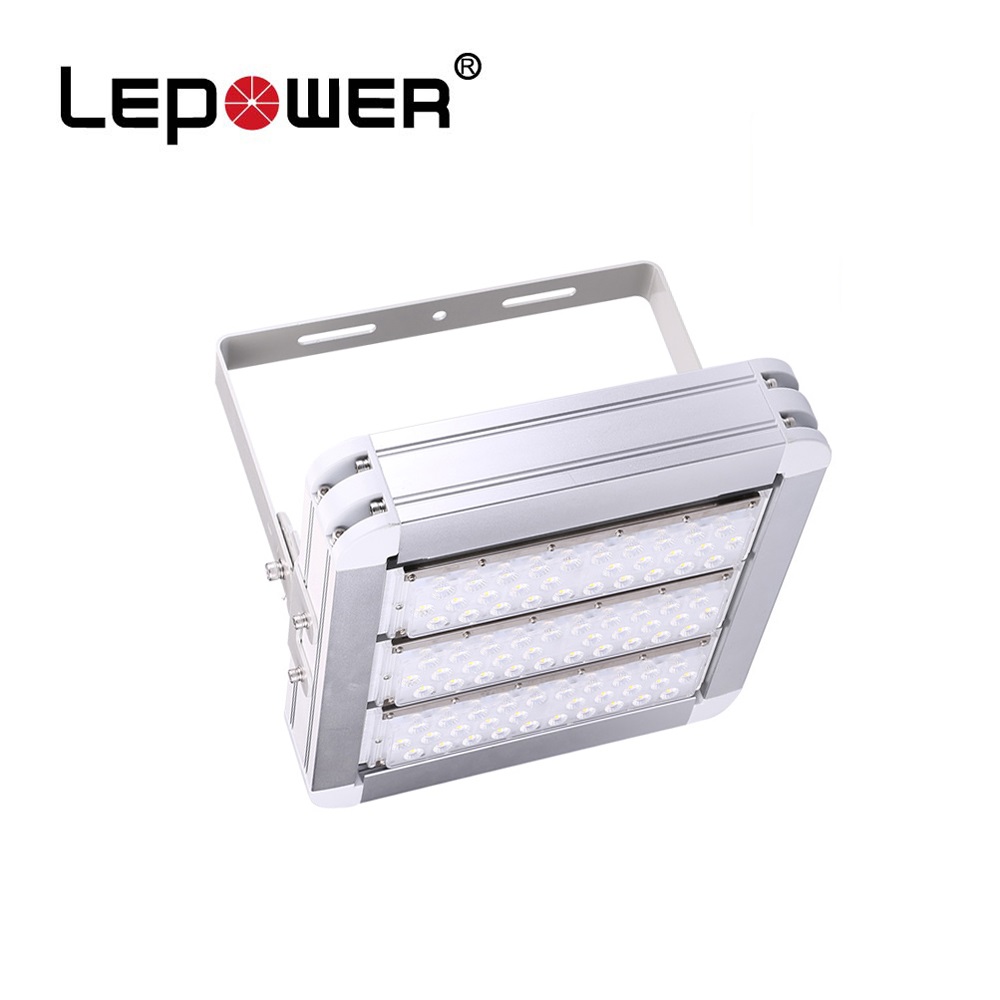

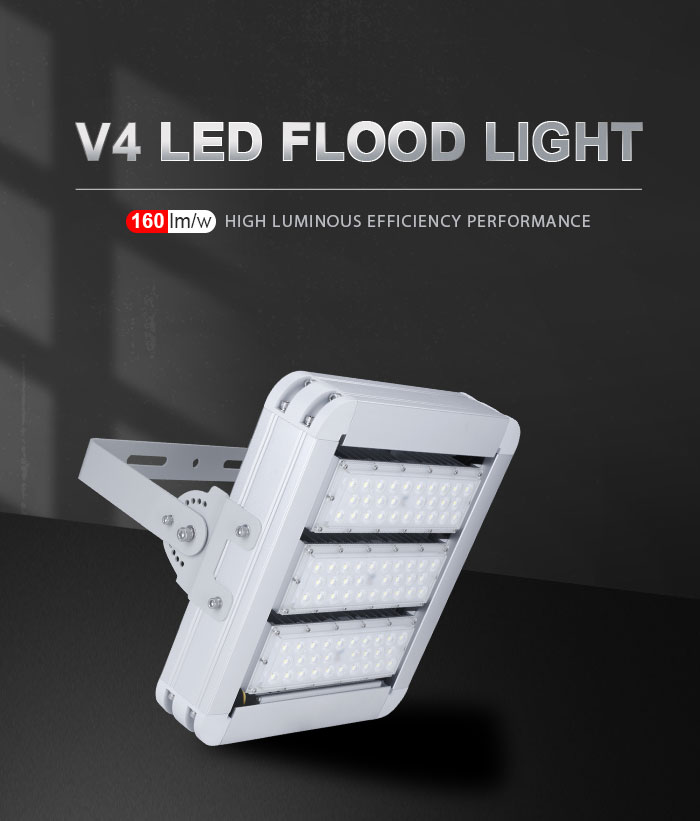

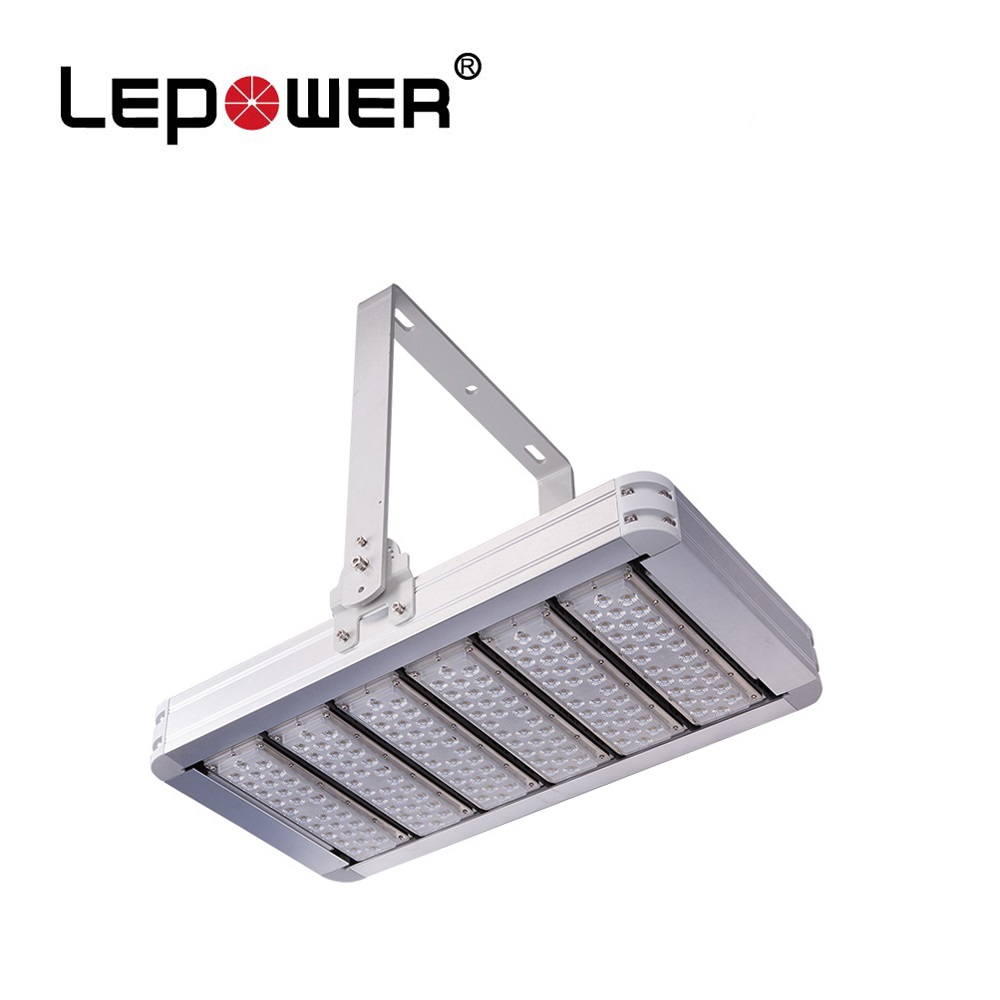

160lm/w LED Flood Light / LED High Bay Light
Power Options: 100W 200W 300W 500W
Product Detailed View
| Name |
Nominal Value |
| Model |
LY-HB0402 |
| Power |
100W |
| CCT |
3000K/4000K/5000K/6000K |
| Beam angle |
25° 40° 60° 90° 145x100° 150° |

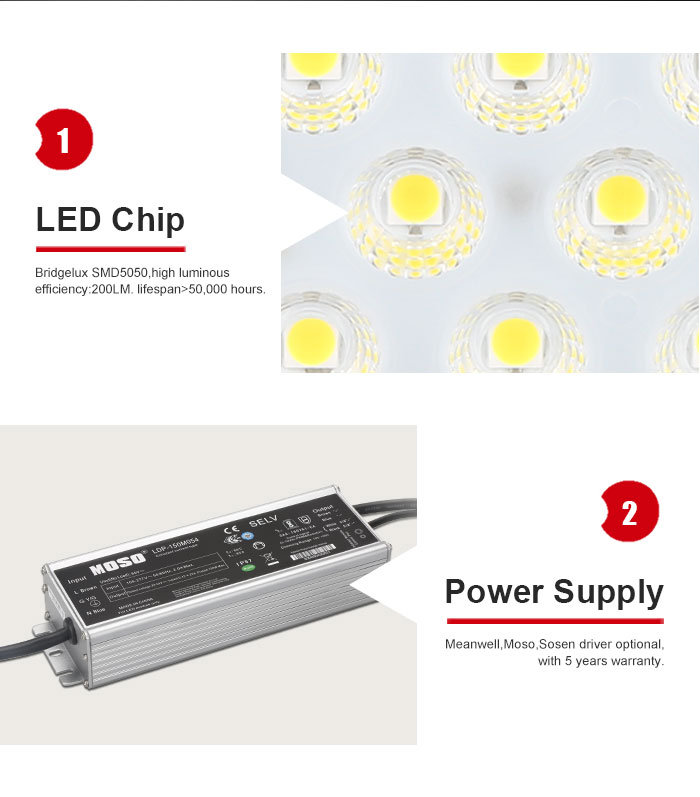

| Chip brand |
Bridgelux 5050 |
| Efficiency |
160Lm/W |
| Lumen |
>16000lm |
| IP Rate |
IP66 |
| Lifespan |
50000H |
| Housing material |
Aluminum alloy |
| Light size |
282.4*340*144.2mm |
±5mm |

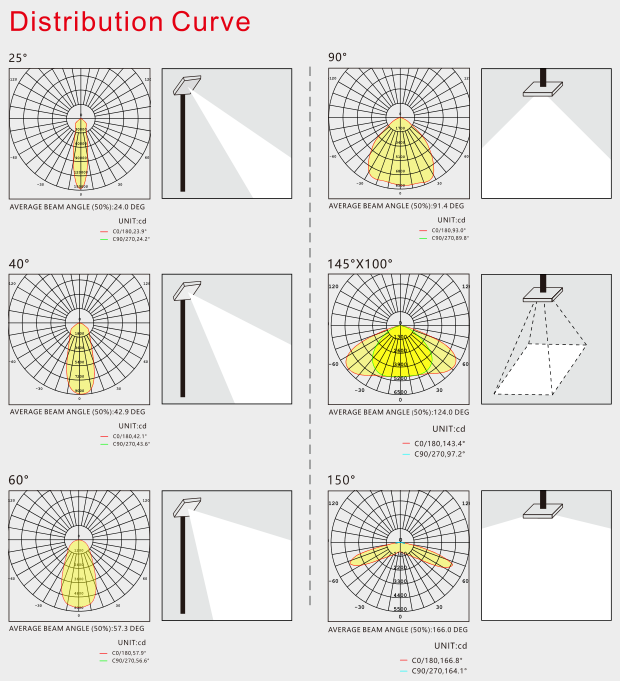

Optical Performance & Beam Angles
💡 Why Choose Our 160lm/w Complete Light?
- Exclusive light source and ZAG Lens: Compared with similar products, the luminous efficiency can rise 8% and light transmittance up to 98%.
- Premium LED Chips: LED chip performance reaches up to 230lm/w.
- Advanced Thermal Management: Great durable heat sink ensures the junction temperature rise is less than 10°C.
- Stability: LEDs packaged by multi-chips provide high lumen, stable performance, and no dead lights.

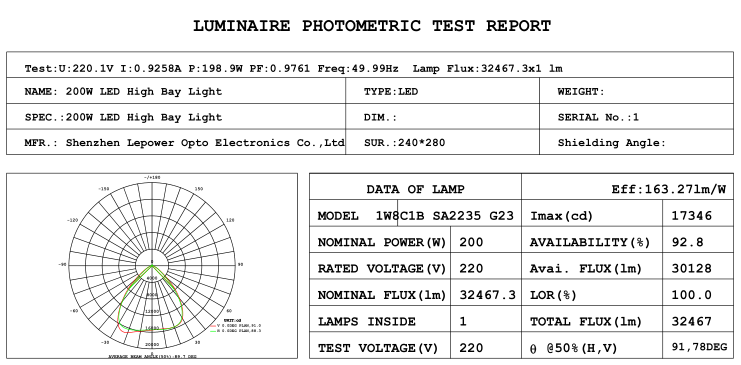

Test Report & Lumen Output (1200W Max)
100W
>16000lm
150W
>24000lm
200W
>32000lm
300W
>50000lm
400W
>60000lm
500W
>78000lm

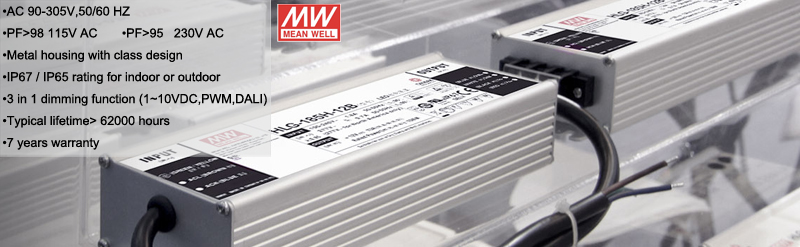

High Efficiency Driver
Standard with 7 years warranty driver for maximum reliability.

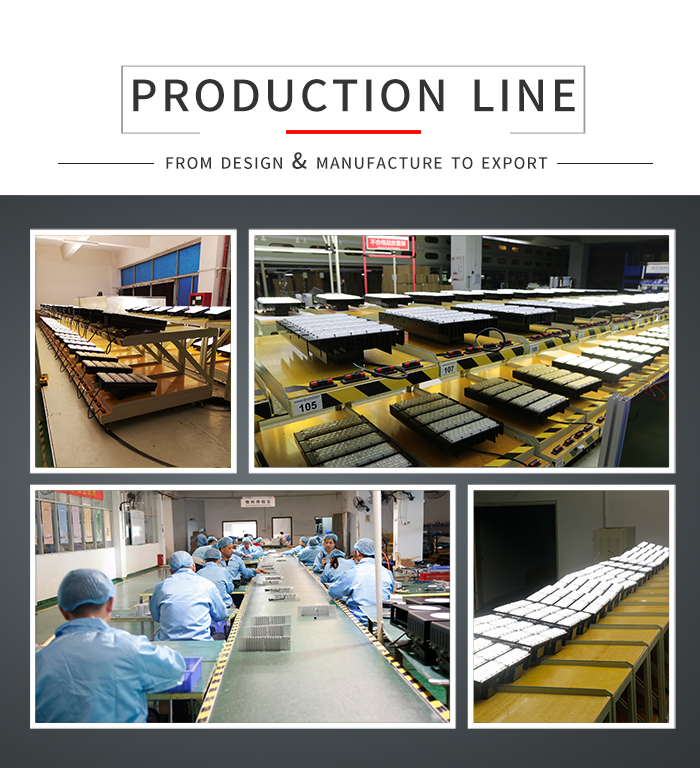

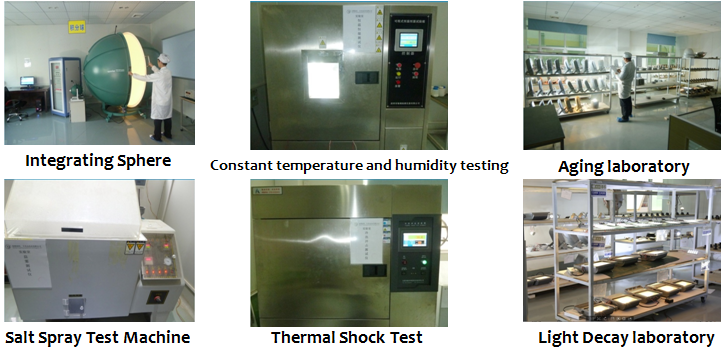

Production & Quality Control
🛒 Trading Conditions
- Payment: 30% deposit; 70% before delivery.
- Delivery: 10-15 days (50pcs); 15-25 days (500pcs).
- Samples: Available in 5 days.
- Shipping: FOB terms applicable.
✅ Quality Control
- Strict material & color temperature sample checks.
- Traceable production phases from start to finish.
- Every light is cleaned and quality-checked before packing.
- Third-party QC inspections welcomed.
🛡️ Warranty & Service
Standard Warranty: 3/5 years warranty options available.
After-Sales: 24-hour response time & life-long maintenance service.
Replacements: Problematic items will be exchanged or replaced upon receipt of proof documents.
Certifications: CE / RoHS / CB compliant.
Frequently Asked Questions
Can we make our own label on the sample lights?
Yes, we offer label customization and provide both OEM & ODM services to meet your specific branding requirements.
How do your lights handle seaside corrosion?
Our lights feature high corrosion resistance. We use advanced surface treatments, including electrostatic spraying and electrophoresis, to effectively protect the fixtures from salt water corrosion.
Is it possible to order a single sample first?
Yes, our MOQ is only 1 piece. We encourage sample testing to build trust and ensure a long-term win-win cooperation.

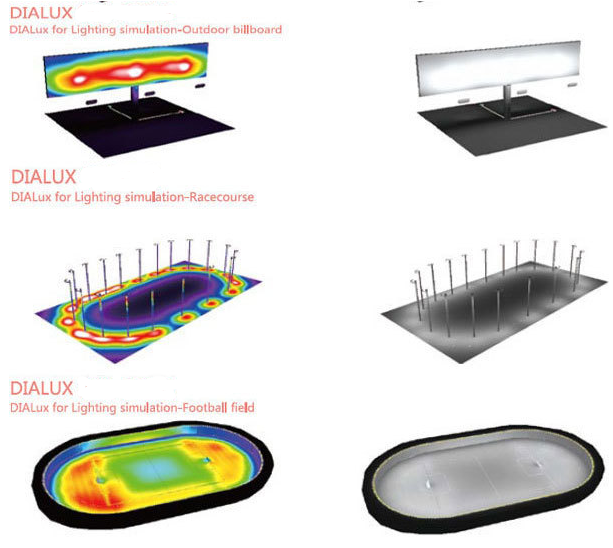

Can you help with lighting design for projects like football stadiums?
Absolutely. Our design teams are specialists in high-power LED solutions and can provide complete lighting designs. We also provide IES files if you prefer to design in-house.
What information is needed for a warehouse lighting suggestion?
To provide the best solution, please provide: 1. The total area of the warehouse/workshop; 2. The installation height; 3. Your specific illumination requirements.
What is your policy for problematic items?
For any items with technical failures under normal usage within the warranty period, we provide free repair or new replacement products based on the provided proof documents.
