Wholesale Linear Industrial Ufo LED High Bay Light SKD IK05 Impact Resistant 80° *150° Beam Angle For Warehouse
Wholesale Linear Industrial Ufo LED High Bay Light SKD IK05 Impact Resistant 80° *150° Beam Angle For Warehouse
Wholesale Linear Industrial Ufo LED High Bay Light SKD IK05 Impact Resistant 80° *150° Beam Angle For Warehouse
Wholesale Linear Industrial Ufo LED High Bay Light SKD IK05 Impact Resistant 80° *150° Beam Angle For Warehouse
Wholesale Linear Industrial Ufo LED High Bay Light SKD IK05 Impact Resistant 80° *150° Beam Angle For Warehouse
1 / 5
Wholesale Linear Industrial Ufo LED High Bay Light SKD IK05 Impact Resistant 80° *150° Beam Angle For Warehouse
Wholesale Linear Industrial Ufo LED High Bay Light SKD IK05 Impact Resistant 80° *150° Beam Angle For Warehouse
Wholesale Linear Industrial Ufo LED High Bay Light SKD IK05 Impact Resistant 80° *150° Beam Angle For Warehouse
Wholesale Linear Industrial Ufo LED High Bay Light SKD IK05 Impact Resistant 80° *150° Beam Angle For Warehouse
Wholesale Linear Industrial Ufo LED High Bay Light SKD IK05 Impact Resistant 80° *150° Beam Angle For Warehouse

Wholesale Linear Industrial Ufo LED High Bay Light SKD IK05 Impact Resistant 80° *150° Beam Angle For Warehouse

Send Inquiry

Product Description

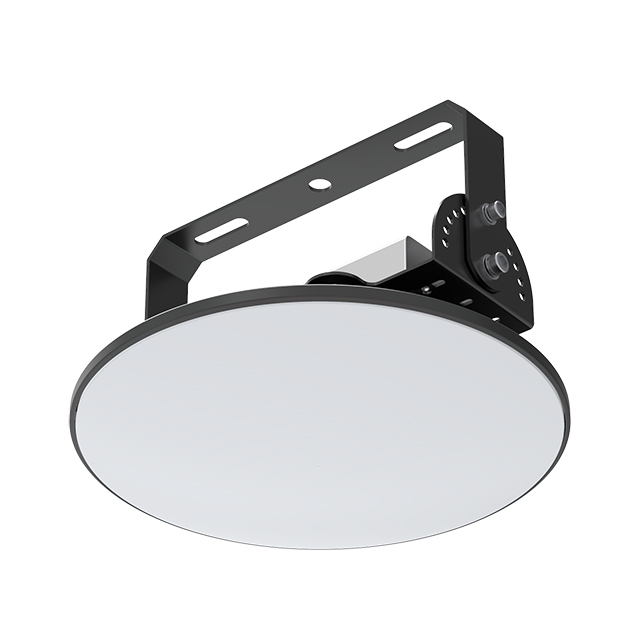

5 series led high bay light housing skd showcase 1
5 series led high bay light housing skd showcase 2
5 series led high bay light housing skd showcase 3
5 series led high bay light housing skd showcase 4

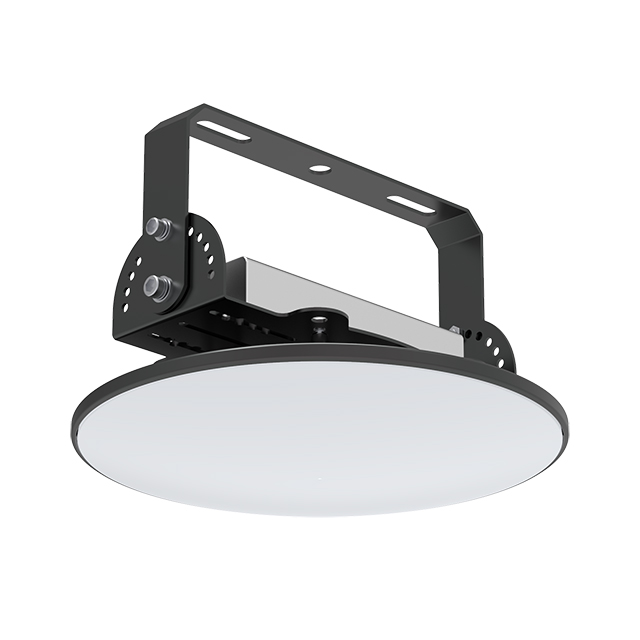

5 series led high bay light housing skd showcase 5
Product Specifications
Product Name 5 series led high bay light housing skd
Product Category led light die-cast aluminum skd
Size 460.74*230*53.5mm
Color Black, Brown, White
IP & IK Rating IP65 IK05
Material Die-cast Aluminium
Surface Treatment Powder coating
Mounting Method Bracket Mounting
Working Temperature (°C) -40°C to 60°C
Beam Angle T3: 80°*150° (Dual Beam Angle Design)
Lifespan 50,000 Hours
Application Road / Highway / Parking Lot
Tiered Price 1-20 pcs: 10.5 USD
21-100 pcs: 10.3 USD
101-500 pcs: 10.1 USD
Lead Time 1-20 pcs: 3 days
21-100 pcs: 7 days
101-1000 pcs: 15 days
Light source LED
Available Power 100W
Product Series 5th Generation UFO
Product Details & Dimensions
5 series led high bay light housing skd dimensional layout
5 series led high bay light housing skd design structure
5 series led high bay light housing skd thermal details
5 series led high bay light housing skd optic lens structure
Frequently Asked Questions
What materials are used in the construction of the 5 series housing?
The housing is manufactured using premium die-cast aluminum with a high-durability powder coating finish, ensuring excellent heat dissipation, anti-corrosion properties, and a prolonged operational lifespan.
What are the IP and IK ratings of this LED high bay housing?
It features an IP65 waterproof rating and an IK05 impact resistance rating, offering superior protection against heavy dust, rain, and minor physical impacts in demanding outdoor settings.
Can this housing support adjustable angle installations?
Yes. Utilizing the bracket mounting method, it allows for secure physical mounting and directional angle adjustments to achieve optimum light coverage across road configurations.
What is the advantage of the Dual Beam Angle Design (T3: 80°*150°)?
The specialized asymmetric dual beam angle optimizes light distribution laterally along pathways, roads, and highways while minimizing backward spill, maximizing effective ground lux values.
What are the estimated delivery lead times for tiered wholesale orders?
Order processing times are streamlined: small batches of 1-20 pieces take 3 days; standard orders of 21-100 pieces take 7 days; and bulk shipments of 101 to 1000 pieces are ready within 15 days.
Is this high bay light housing suitable for extreme temperatures?
Absolutely. Engineered with a highly efficient thermal dissipation path, the housing safely operates under extreme environments within a temperature range of -40°C to 60°C.
