Specification
| Model No. |
T11 |
T12 |
T13 |
T14 |
| Power |
10W |
15W |
30W |
50W |
| LED Chips |
SMD3030*28PCS |
SMD3030*56PCS |
SMD3030*144PCS |
SMD3030*144PCS |
| Luminous flux |
1200LM |
2000LM |
4000LM |
6000 LM |
| LiFePO4 battery |
3.2V 15AH |
3.2V 30AH |
3.2V 60AH |
3.2V 90AH |
| Installation height |
3-4M |
4-5M |
5-7M |
6-8M |
| Product size(CM) |
46*23*5 |
67*32*5 |
84*37*5 |
105*37*5 |
| Packaging size(CM) |
49*26*9 |
72*36*11.5 |
89.5*42.5*11.5 |
110*42.5*11.5 |
-
✓

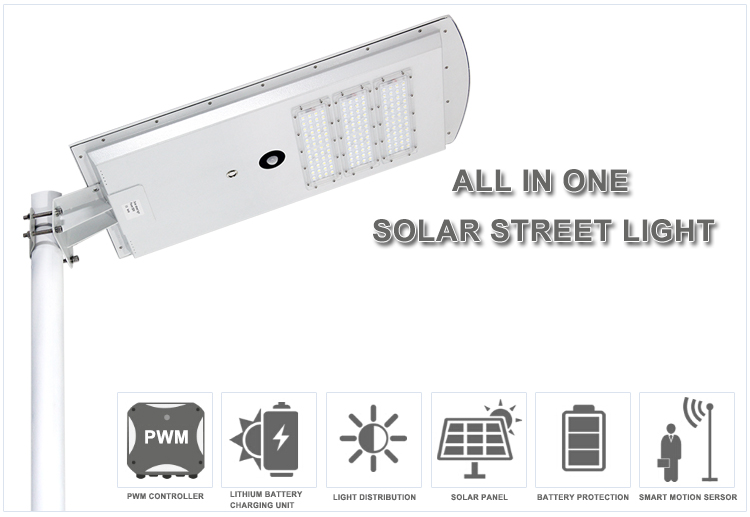

Easy installations, no electrical bills
Solar powered led street light, can be mounted on wall or pole, that in direct sunlight for charging.
-
✓

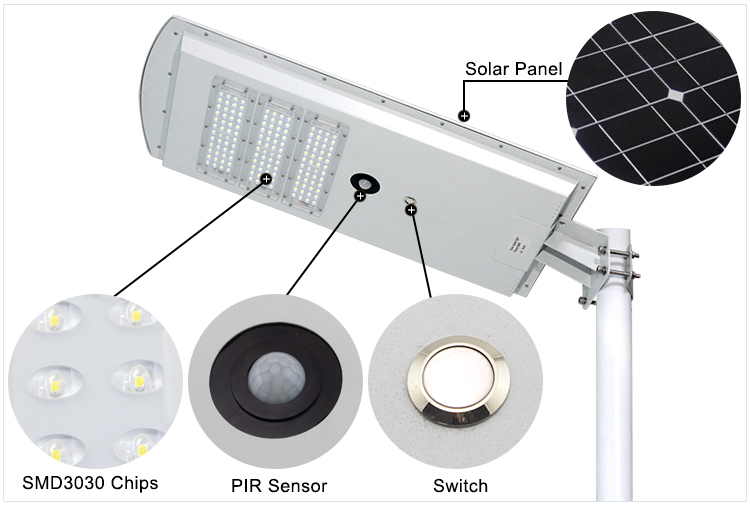

Motion and light sensor built in

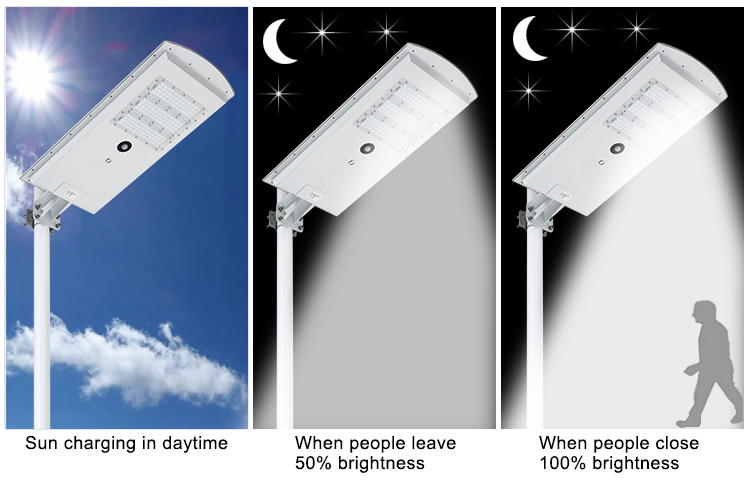

Solar street light goes on at dusk at 50% brightness. Can go from 50% power to full brightness when motion is detected.
-
✓
Three Intelligent Modes: Bright / DIM / Recharge
1. Bright: motion activates for lighting when motion is detected for security light and to save battery;
2. DIM: 50% lighting for saving power when no motion;
3. Off/Recharge: automatically turns off in daylight and goes into recharge mode.

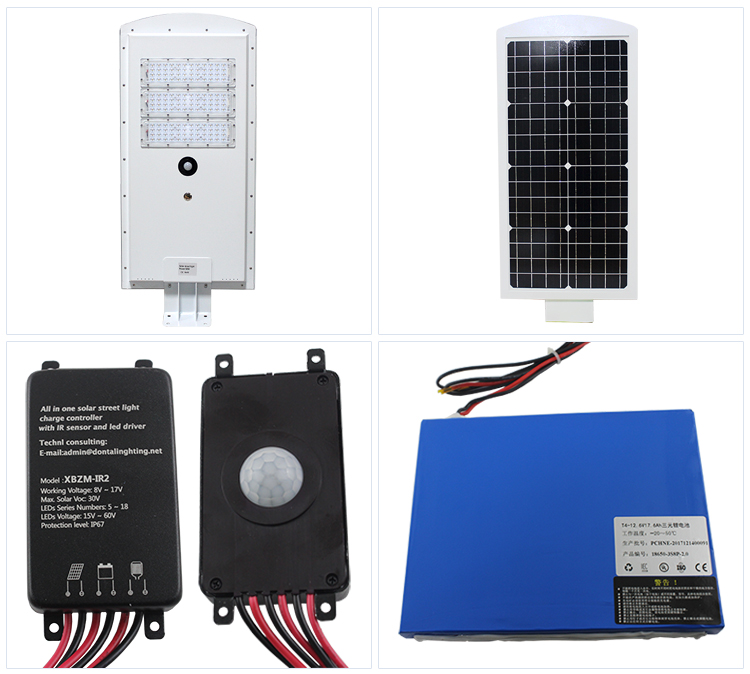

Solar Street Light Controller
Infrared body sensor , Microwave induction
With infrared body induction controlled technology, it can store energy during the daylight, when people pass through at night it auto modulate on/off.
Smart Sensor Control
During the night, the light can work automatically controlled by the smart sensor; when people pass through and on energy-saving mode, It will be on bright mode. (working mode can be adjusted according to client's demands).

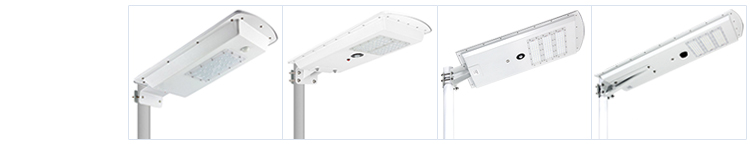

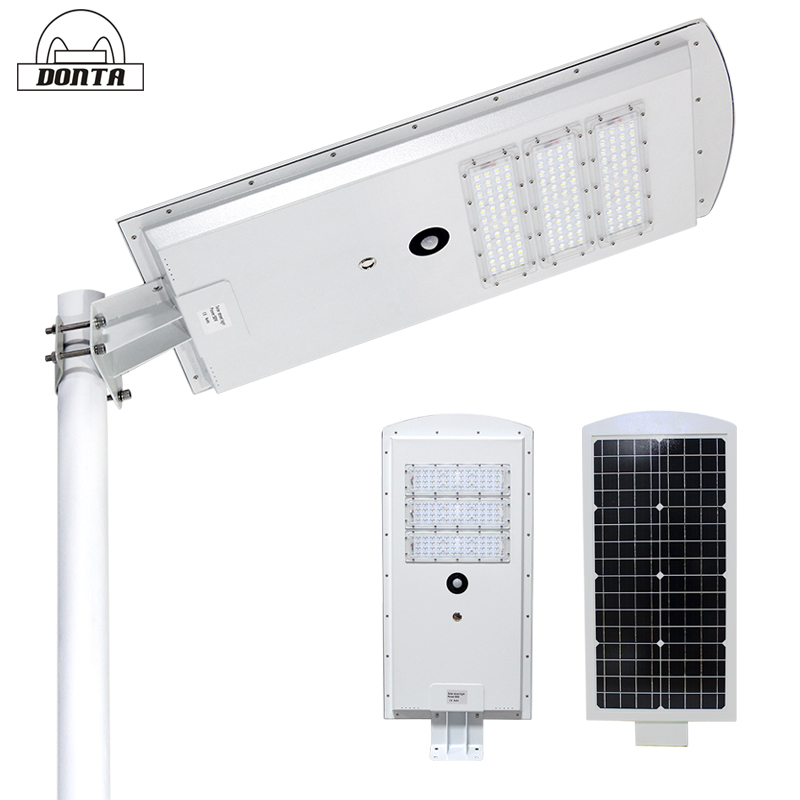

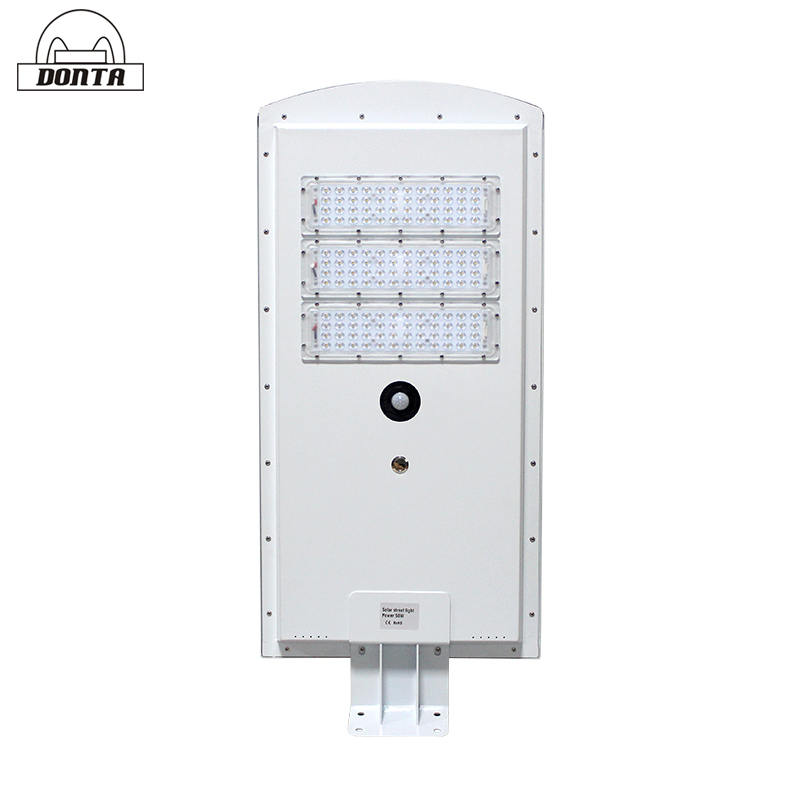

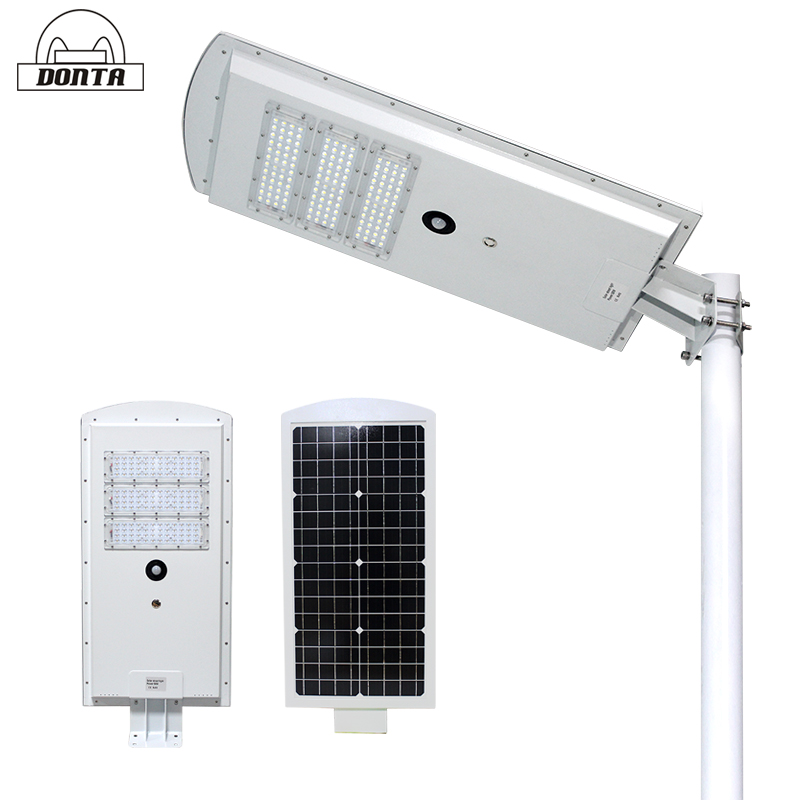

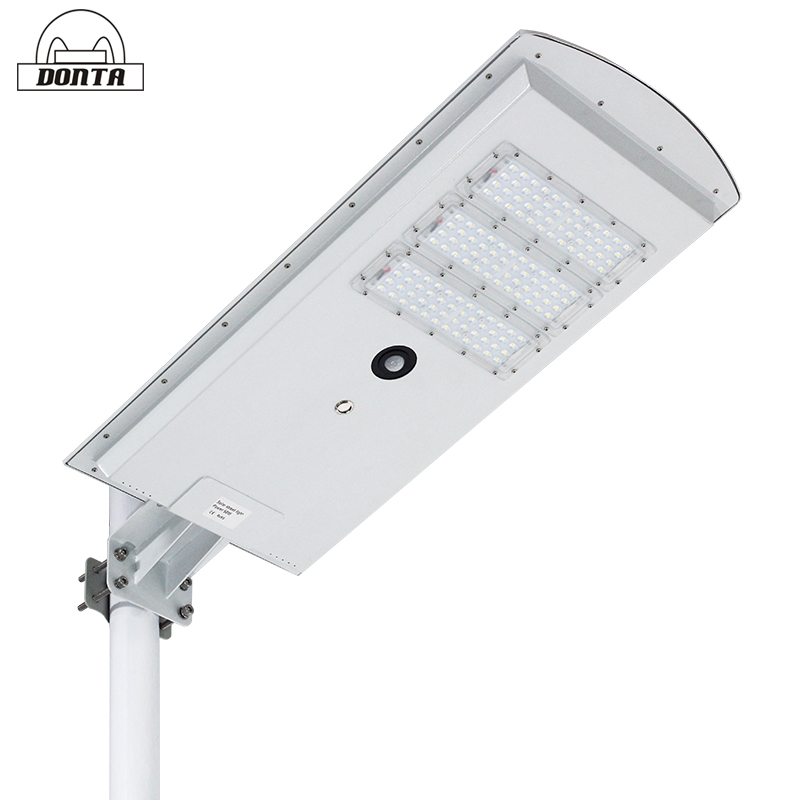

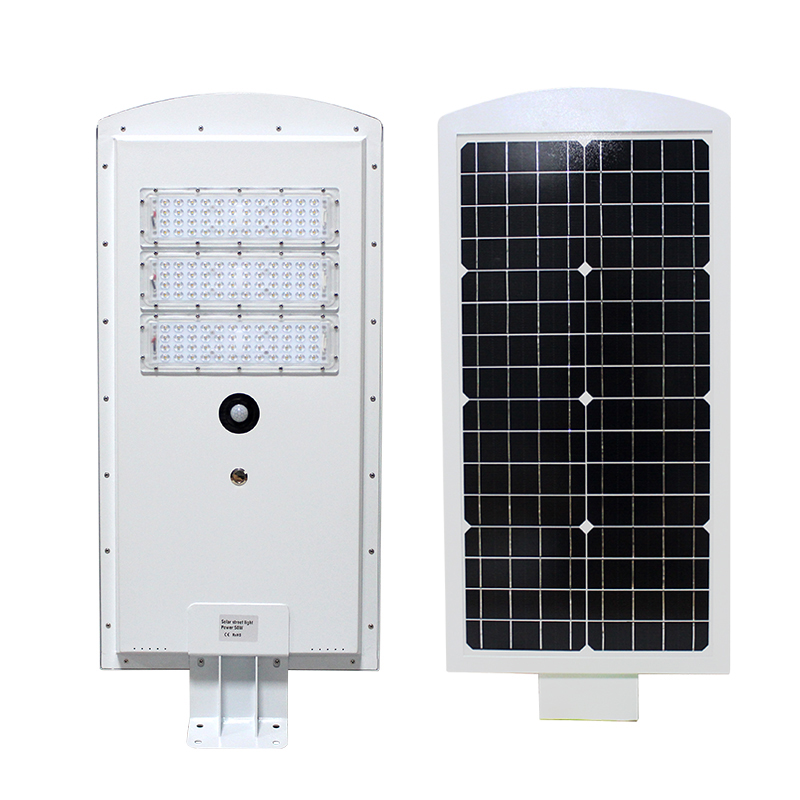

IP66 waterproof motion sensor all in one solar powered street lights 40w for outdoor neighborhood road
Frequently Asked Questions
Q1:
What is the waterproof rating of this solar street light?
This solar powered street light has a high-quality IP66 waterproof rating, which makes it highly durable and perfect for outdoor neighborhood roads under various harsh weather conditions.
Q2:
How does the built-in motion sensor function?
The light features a smart motion and light sensor. It turns on at dusk at 50% brightness and increases to 100% full brightness automatically when motion is detected. It returns to 50% brightness when no motion is detected to save battery life.
Q3:
What are the three intelligent modes?
The system works on three modes: 1. Bright Mode (full brightness on motion detection); 2. DIM Mode (50% output when static to save energy); and 3. Off/Recharge Mode (automatically powers off during daylight to recharge).
Q4:
What type of battery is integrated in these lights?
It features a premium LiFePO4 battery (ranging from 3.2V 15AH up to 90AH depending on the model chosen), which offers exceptional thermal stability and a long operational lifespan.
Q5:
What is the recommended installation height?
The recommended installation height depends on the power model: 3-4 meters for 10W (T11), 4-5 meters for 15W (T12), 5-7 meters for 30W (T13), and 6-8 meters for 50W (T14).
Q6:
Is wiring required for installation?
No wiring is required. It is an all-in-one wireless solar street light that can be mounted directly on walls or poles where direct sunlight is available.
