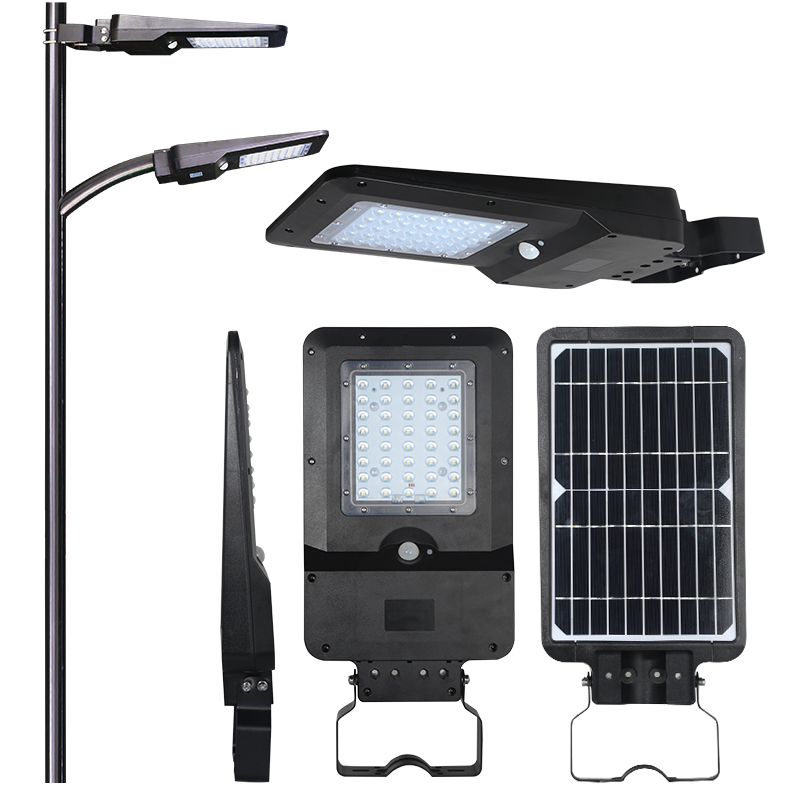

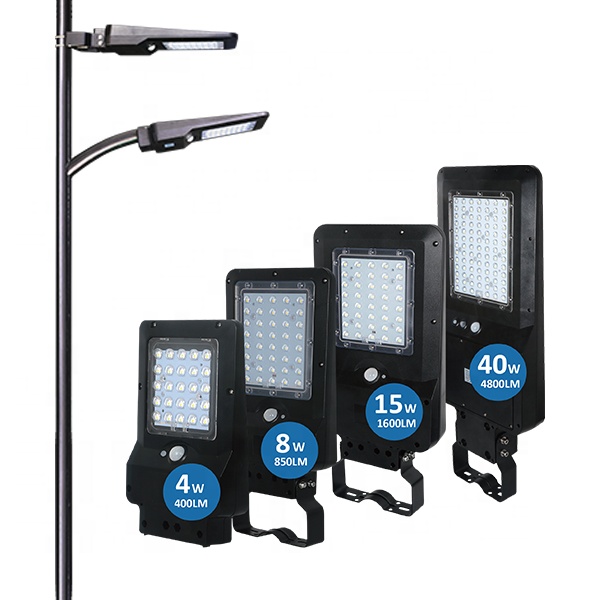

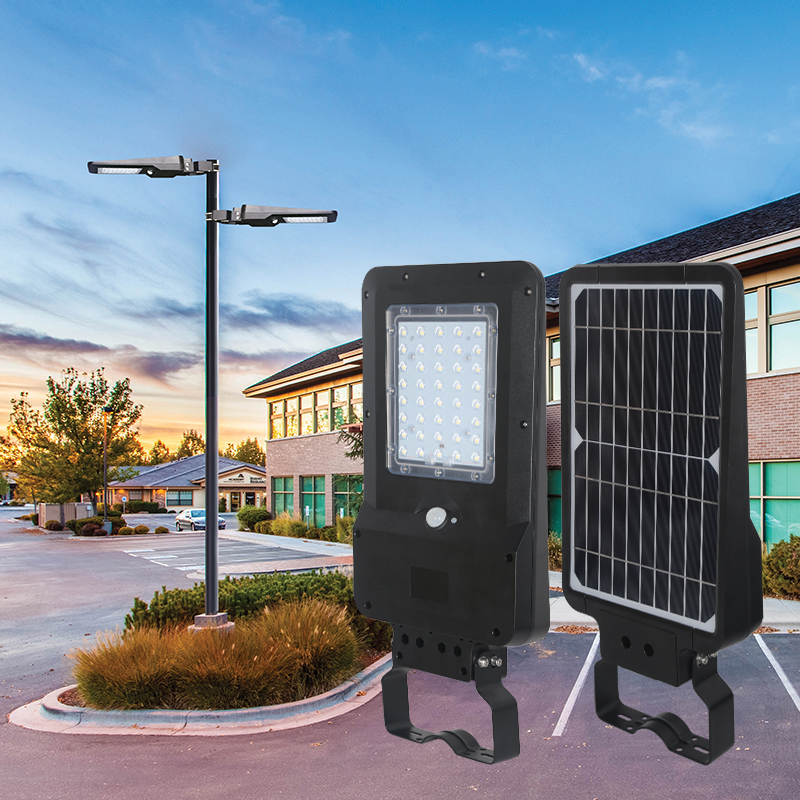

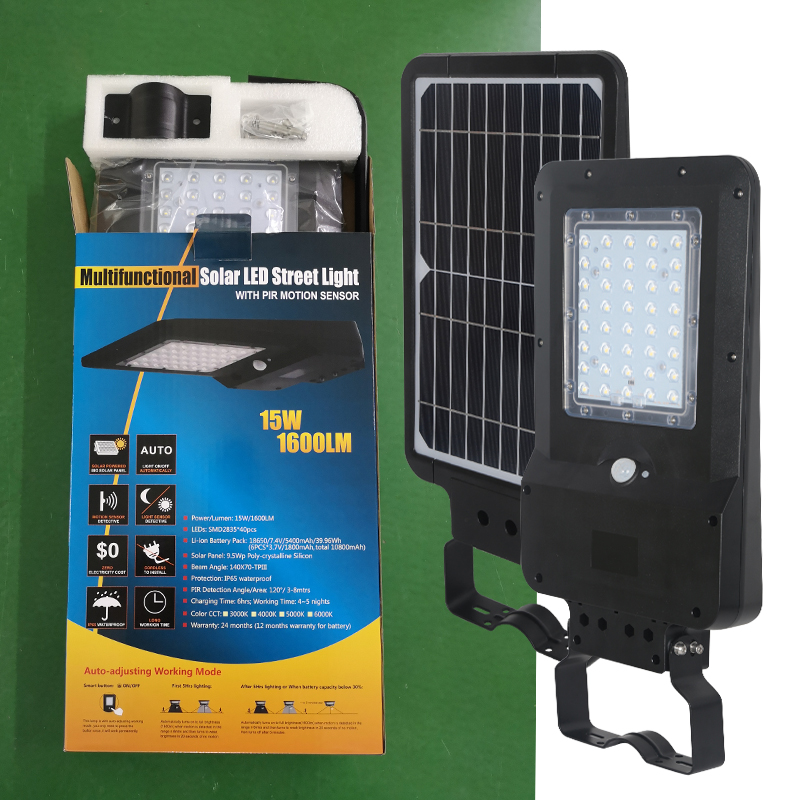

All In One Solar Street Light Pro 4w/8w/15w Solar Led Street Light

Product Description

Specifications

Product Model LD-SSL-15W-Pro
Power 15W
Lumen 1600lm
LED Type SMD 2835*40pcs
Solar Panel Moly-crystalline silicon (9.5Wp)
Battery 5400mAH/7.4V Lithium battery (total capacity 10800mAh/3.7V)
Charging Time 8-12hrs strong sunshine to fully charge
Working Time Auto adjustable (5 days+)
Lamp Dimension 492.5*231.9*58mm
PIR sensor Range Detection angle: 120°; Detection area: 3-8M
Beam angle 140X70°-TPIII
IP Class IP65
Housing Material ABS+PC
Housing Color Black
Working Temp -20C° - 50C°
Storage Temp 0C° - 50C°
Warranty 24 months (battery warranty 12 months)

Product Features

Product Features Detail
  • Unique patent design, slim, smart, durable, easy install.
  • Patented smart working modes, smart & longer lighting time.

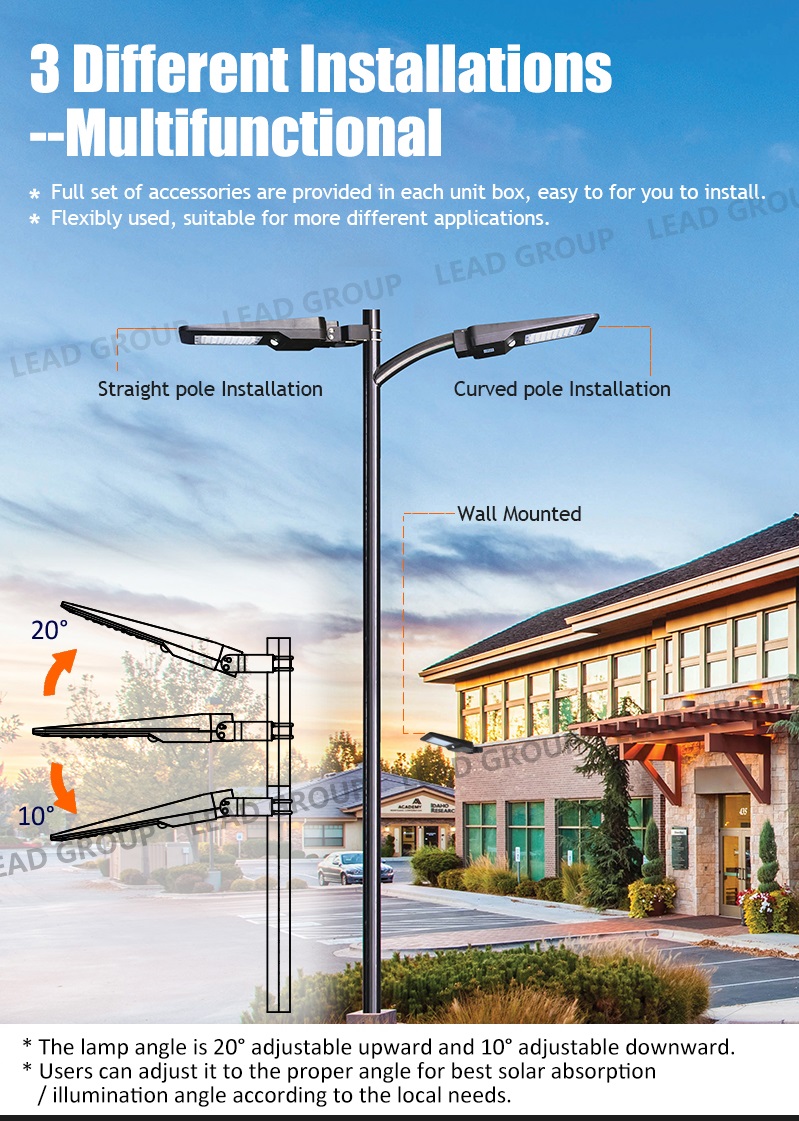

  • 3 optional installation: ① wall mounted, ② straight pole installation, ③ curved pole installation.
  • Professional optical lens, wide lighting area and more brightness.
  • SMD2835 chips high lumen & long daily use time by 18650 lithium battery stocking power, capacity 10800mAh.
  • High quality mono-crystalline silicon solar panel, high efficiency conversion solar power to electricity.
  • Tilt down 5 degree design, better to get sunshine, helpful for solar panel clean and water drainage at rainy days.
  • The lamp can be flexibly 20° upward and 10° downward adjustable, you can easily adjust it to best angle for biggest solar charging.
  • Scientific human induction design, wide angle detection, makes the body movement detection in large angle and longer distance.

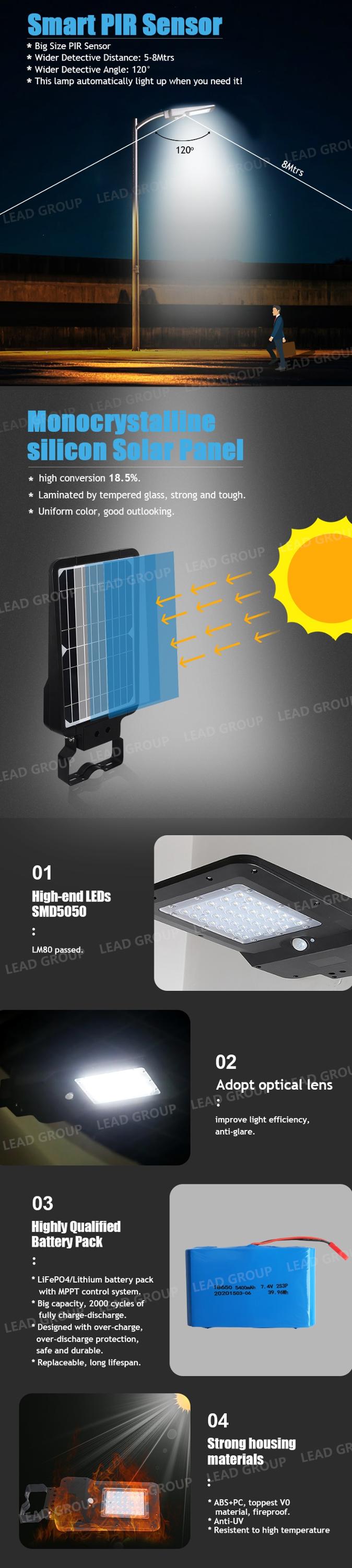

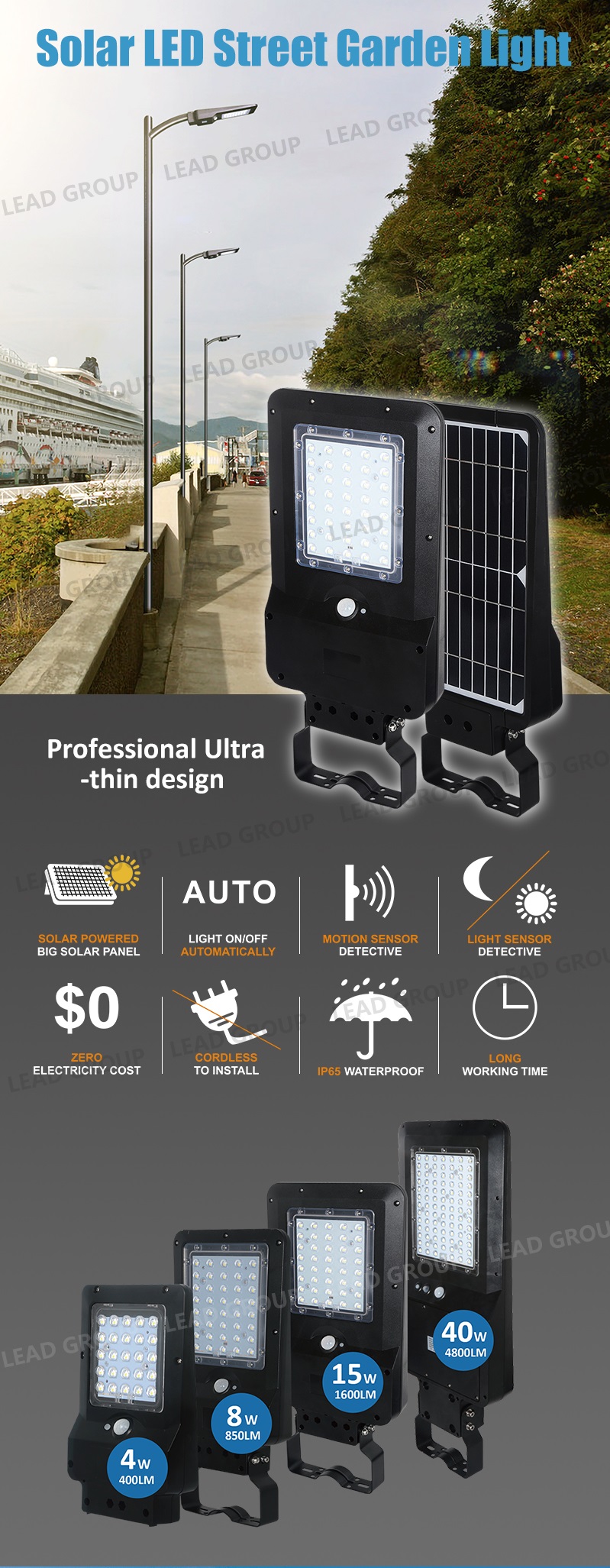

Feature Graphic 1 Feature Graphic 2

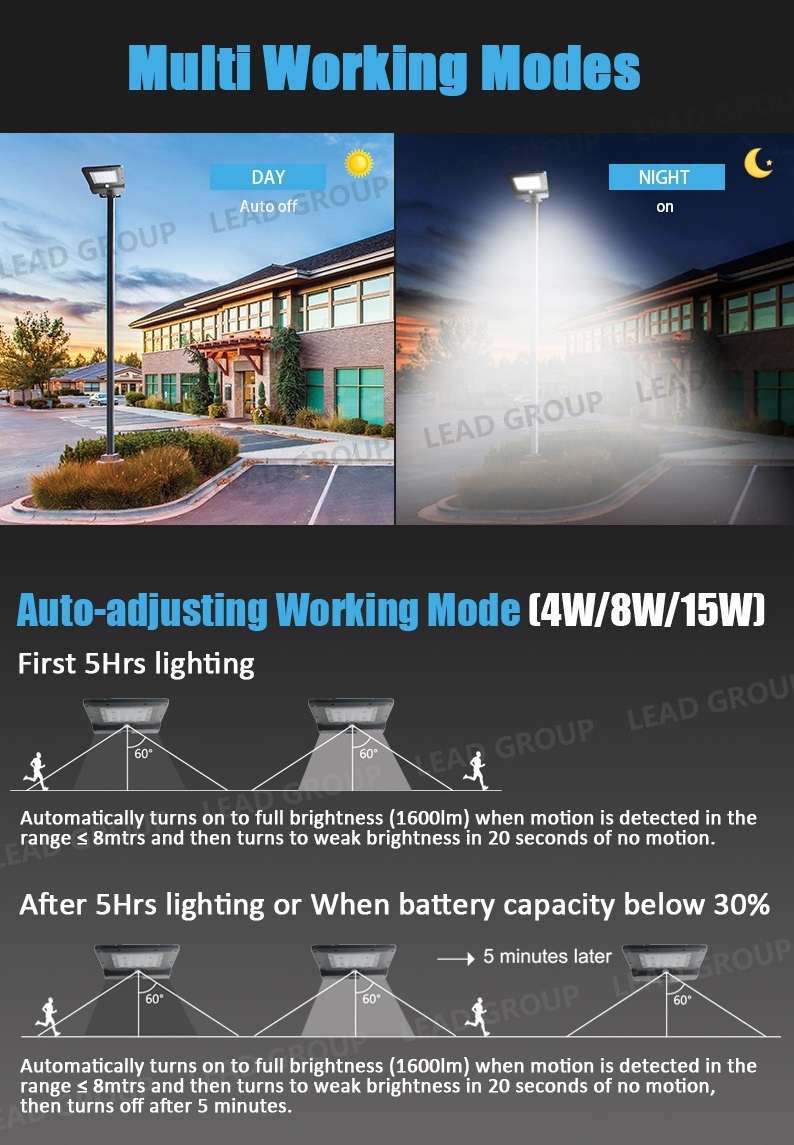

Working Modes

Working Modes Diagram

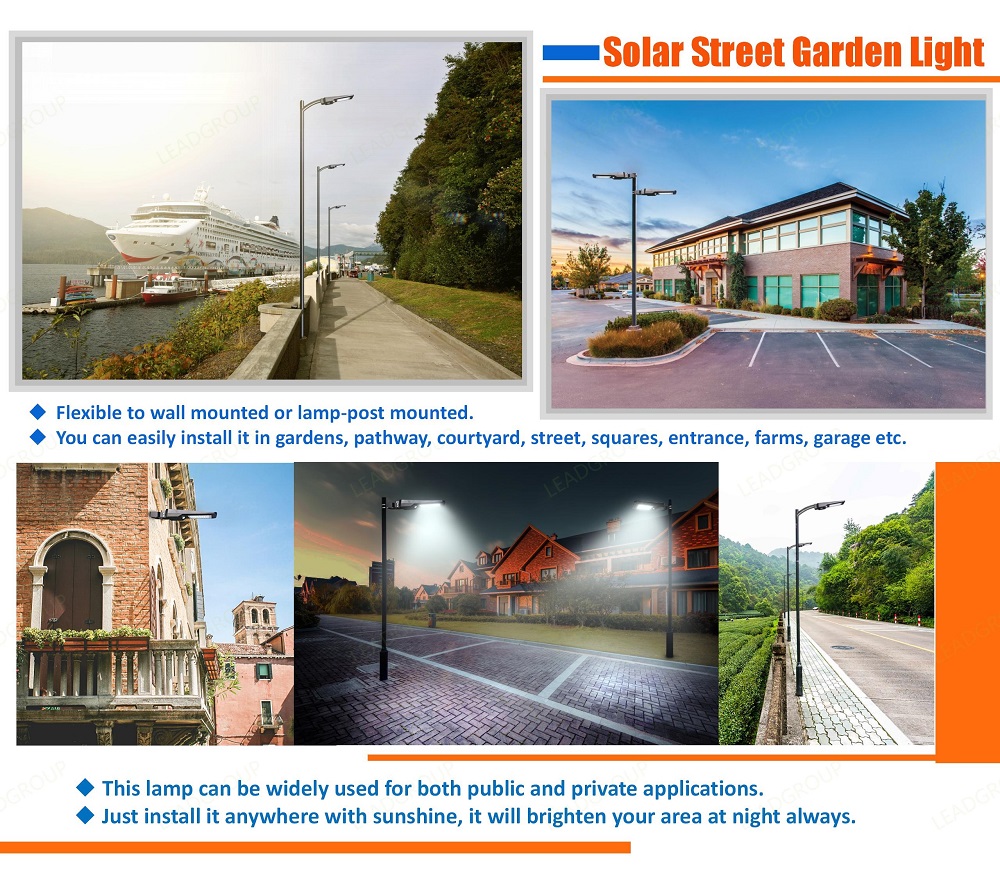

Applications

Product Applications

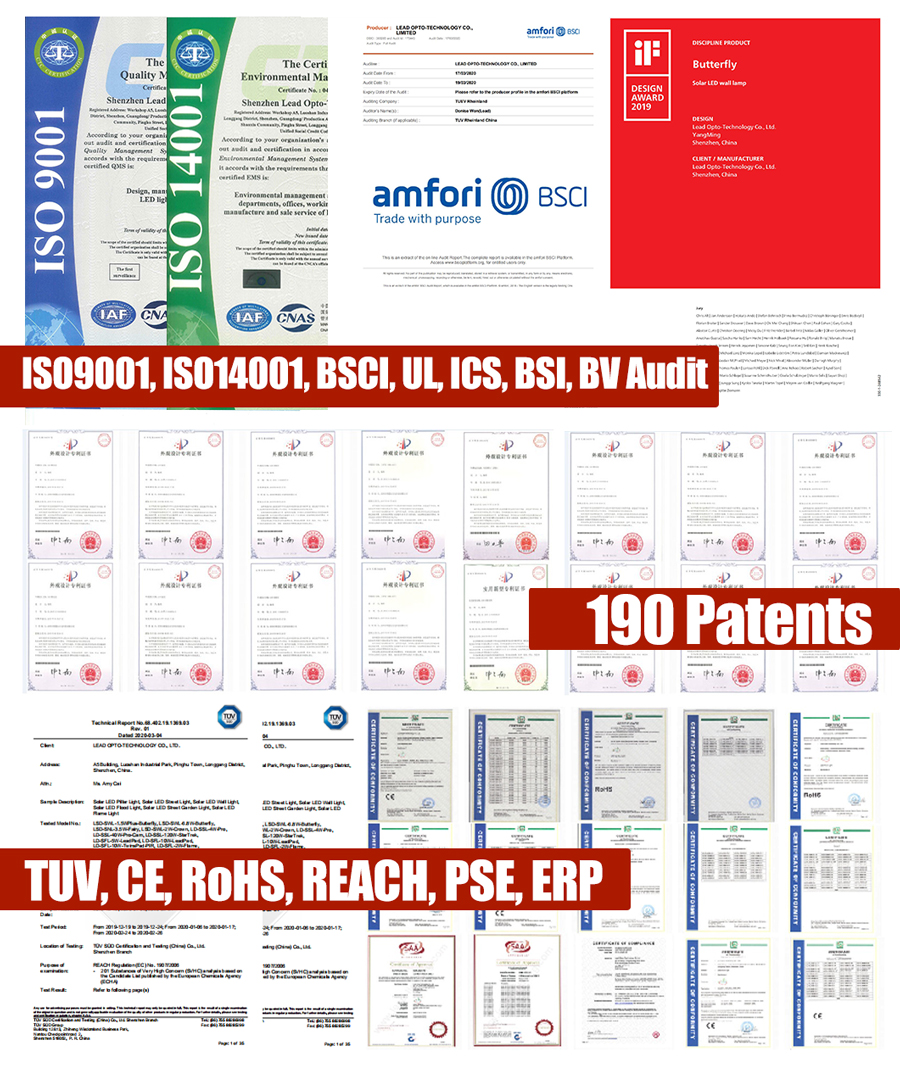

Certifications

Product Certifications

Production & Delivery

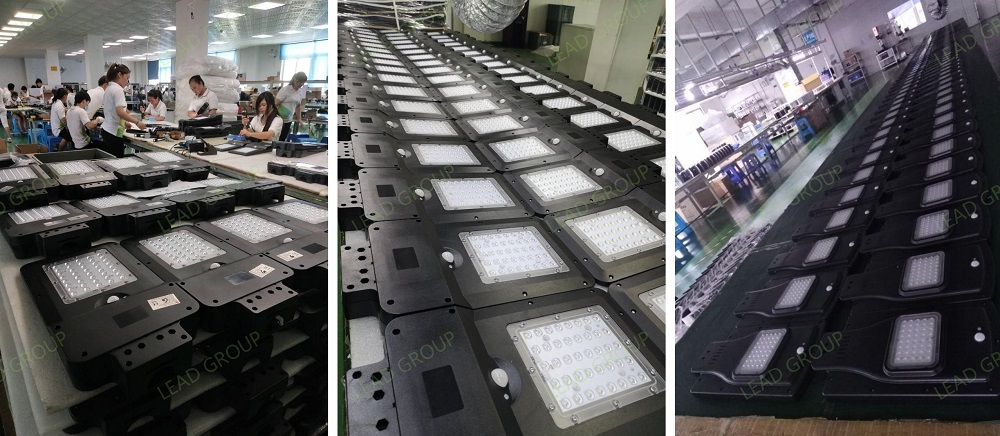

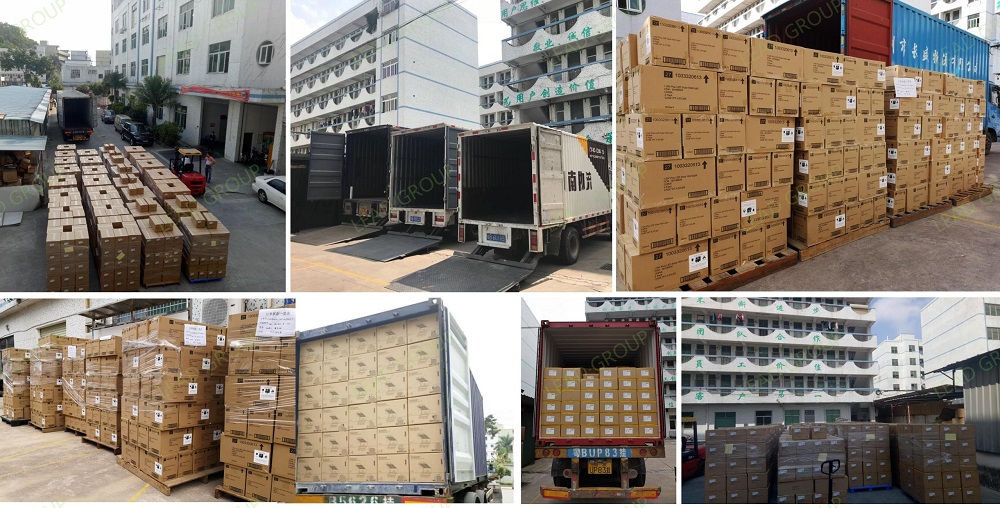

Production Process Delivery Preparation

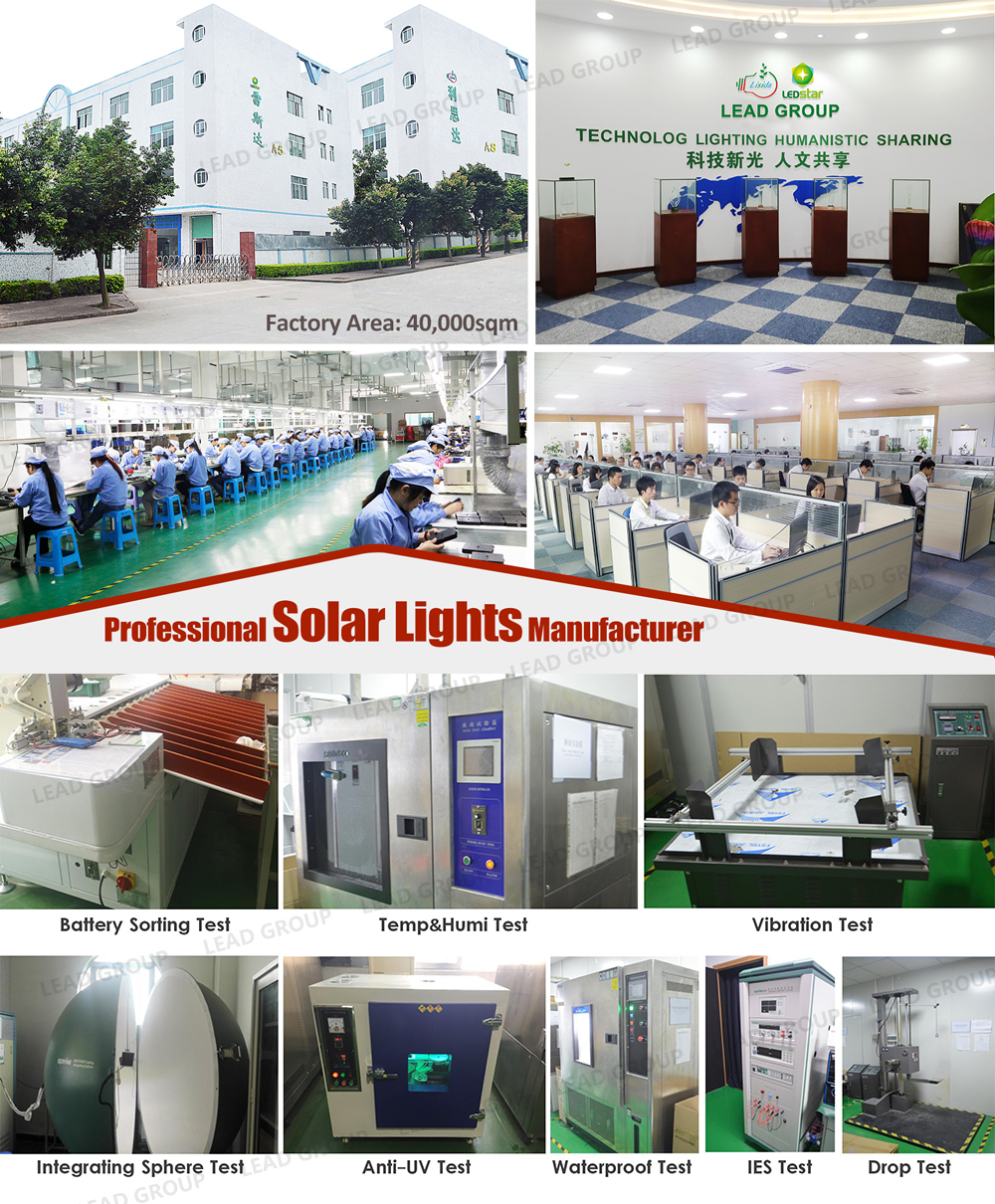

Why Choose Us

Why Choose Us Graphic
Professional Solar Lights Manufacturer for your support.
  • We have more than 10 years of manufacturing solar lights, all products are private designs with patent protection.
  • Have rich experience of cooperation with world-class brand customers, professionally support our customers.
  • Factory passed BSCI, UL, BSI, ICS, BV audit, ISO9001 and ISO14001.
  • Products are certified with TUV, CE, RoHS, REACH, PSE, EN62471, IEC62133 etc.
  • We offer extra supports for our clients, like demos, displays, posters etc, helping you enhance local promotion.
  • Each type of solar light is unique design with super functions, attract more business opportunities for clients.
  • Full range of solar lights from 1.5W to 120W, suitable for retails, wholesale and projects.
  • Products warranty 3-7 years, highly stable quality for long-term cooperation.

Recommend Products

Recommended Products Lineup

As a professional solar light manufacturer, we R&D and produce solar lights only but in full range of different types, including solar wall lights, solar street light, solar garden light, solar security light, solar bollard light, solar flame light, solar wall pack light, solar flood light, solar batten light etc.

Frequently Asked Questions

What are the primary specifications of the LD-SSL-15W-Pro solar light?
The LD-SSL-15W-Pro features a 15W power rating, delivering a brightness of 1600 lumens through 40 SMD 2835 LEDs. It is equipped with a 9.5Wp mono-crystalline silicon solar panel and a 10800mAh total capacity lithium battery (5400mAh/7.4V).
How long does the battery take to charge, and what is its working duration?
The light requires 8 to 12 hours of strong sunshine to achieve a full charge. Once fully charged, the system auto-adjusts its output to run for 5 or more consecutive days.
What mounting options are available for this solar street light?
It offers 3 versatile mounting configurations: wall mounted, straight pole installation, and curved pole installation. Additionally, the bracket allows adjustments up to 20° upward and 10° downward to achieve optimal solar angles.
Does this product feature motion detection?
Yes, the solar light includes a PIR motion sensor. It features a wide 120-degree detection angle and scans an area extending from 3 to 8 meters.
Is the housing waterproof and suitable for extreme temperatures?
Yes, the housing is constructed from durable ABS+PC materials and boasts an IP65 ingress protection rating. It is designed to operate in temperatures ranging from -20°C to 50°C.
What is the warranty coverage for this product?
The product comes with a comprehensive 24-month warranty, with the internal lithium battery covered separately for 12 months.
