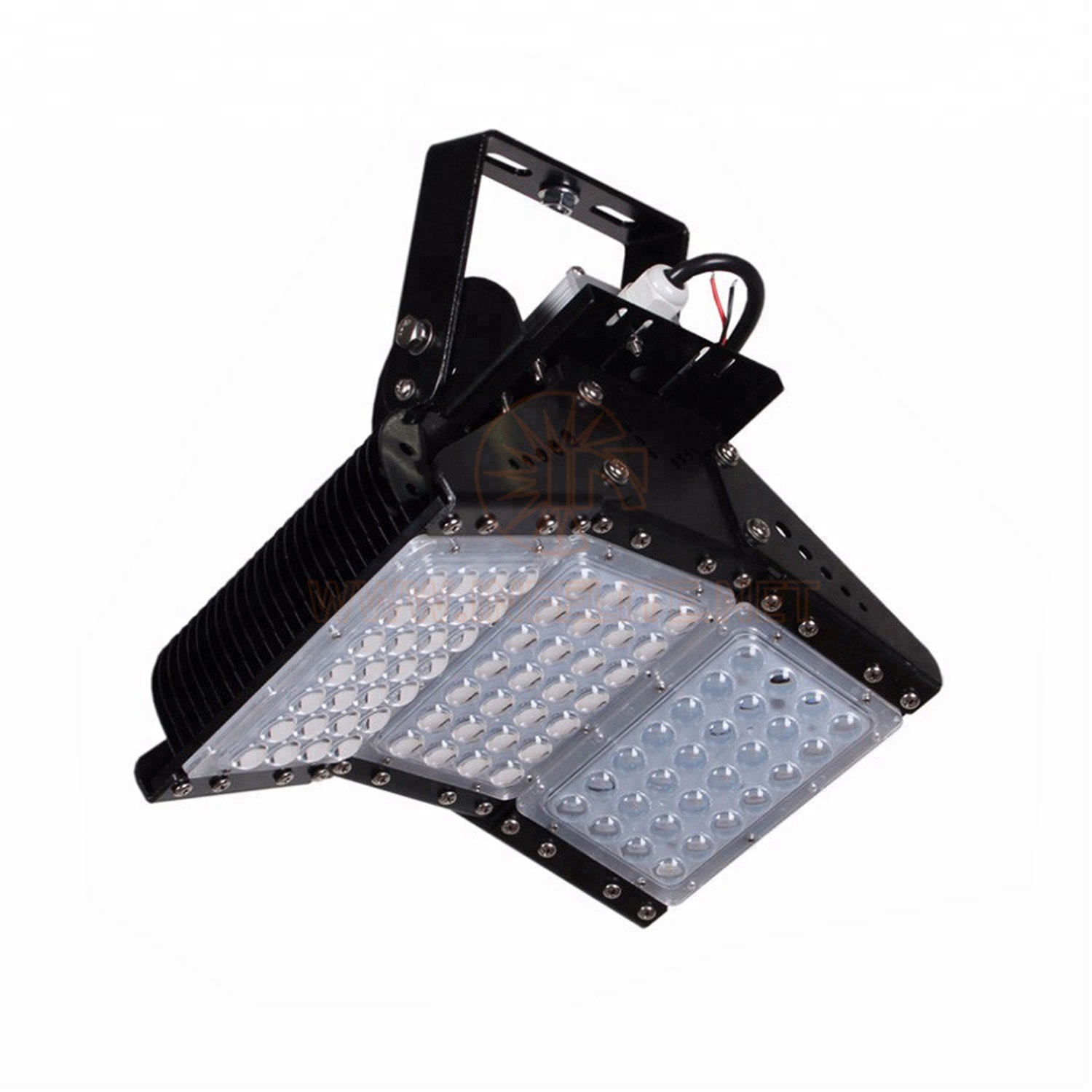

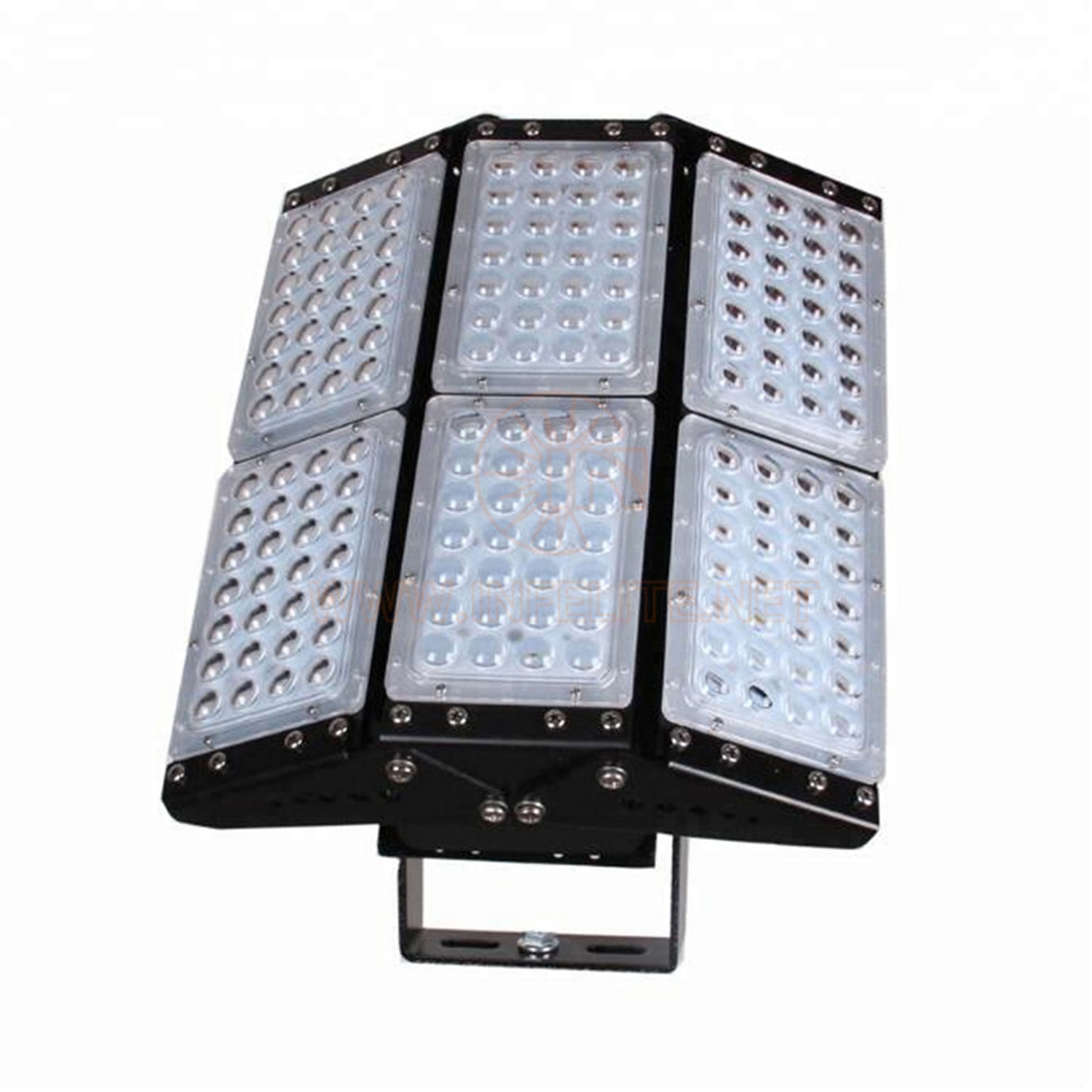

IN-FL202 SMD3030 Modular Adjustable 50W 100W 150W 200W 250W 300W 400W 450W LED Tunnel Floodlight Garden Flood Light
IN-FL202 SMD3030 Modular Adjustable 50W 100W 150W 200W 250W 300W 400W 450W LED Tunnel Floodlight Garden Flood Light
IN-FL202 SMD3030 Modular Adjustable 50W 100W 150W 200W 250W 300W 400W 450W LED Tunnel Floodlight Garden Flood Light
IN-FL202 SMD3030 Modular Adjustable 50W 100W 150W 200W 250W 300W 400W 450W LED Tunnel Floodlight Garden Flood Light
IN-FL202 SMD3030 Modular Adjustable 50W 100W 150W 200W 250W 300W 400W 450W LED Tunnel Floodlight Garden Flood Light
1 / 5
IN-FL202 SMD3030 Modular Adjustable 50W 100W 150W 200W 250W 300W 400W 450W LED Tunnel Floodlight Garden Flood Light
IN-FL202 SMD3030 Modular Adjustable 50W 100W 150W 200W 250W 300W 400W 450W LED Tunnel Floodlight Garden Flood Light
IN-FL202 SMD3030 Modular Adjustable 50W 100W 150W 200W 250W 300W 400W 450W LED Tunnel Floodlight Garden Flood Light
IN-FL202 SMD3030 Modular Adjustable 50W 100W 150W 200W 250W 300W 400W 450W LED Tunnel Floodlight Garden Flood Light
IN-FL202 SMD3030 Modular Adjustable 50W 100W 150W 200W 250W 300W 400W 450W LED Tunnel Floodlight Garden Flood Light

IN-FL202 SMD3030 Modular Adjustable 50W 100W 150W 200W 250W 300W 400W 450W LED Tunnel Floodlight Garden Flood Light

Send Inquiry

Product Description

Modular Adjustable LED Tunnel Floodlight Garden Flood Light
IN-FL202 SMD3030 Modular Adjustable 50W 100W 150W 200W 250W 300W 400W 450W LED Tunnel Floodlight Flood Garden Light
Product Overviews
FL202 Modular Adjustable 3030 LED Flood Tunnel Light Parameters:
Product Model Power (Watt) Lumen (lm) LED Qty. (SMD) Unit Size (mm)
IN-FL202-50W 50 Watts 5500lm 3030/60pcs L315*W87*H214mm
IN-FL202-100W 100 Watts 11000lm 3030/120pcs L315*W183*H214mm
IN-FL202-150W 150 Watts 16500lm 3030/180pcs L315*W279*H214mm
IN-FL202-200W 200 Watts 22000lm 3030/240pcs L315*W375*H214mm
IN-FL202-250W 250 Watts 27500lm 3030/300pcs L315*W471*H214mm
IN-FL202-300W 300 Watts 33000lm 3030/360pcs L315*W567*H214mm
IN-FL202-400W 400 Watts 44000lm 3030/480pcs L631*W375*H214mm
IN-FL202-450W 450 Watts 45000lm 3030/540pcs L531*W303*H225mm
Voltage Input: AC85-277V, AC100-305V, 50/60HZ
Luminous Intensity: 100lm/W, 110lm/W, 130lm/W, SMD3030 LED Chip
PF/CRI/THD: PF>0.97, Ra>80, THD<15%
Viewing Angle: Beam Angle: 60-260 Degrees Adjustable, Bracket Rotating Angle: 270 Degrees
Color Temp. (CCT): WW:3000-3500K, NW:4000-4500K, WW:6000-7000K
Working Temp.: -22°F-+140°F (-30℃-60℃, Work Humidity: 5-95% R.H.)
Driver Type: External Meanwell ELG HLG Series, Lifud Waterproof Driver
IP Rating: Dustproof, Waterproof IP65 Grade
Lamp Base: Line Interface, 3 Core Outlet Cable
Product Material: High Strength Aluminum Alloy + PMMA + Steel
Lamp Color: Black
Life Span: Over 50,000 Hours, 5 Years' Quality Warranty
OEM Service: Support Your Logo Printed or Laser Marked On Lamp Body
LED Flood Light Features
  • Brand new high brightness LM-80 listed COB LED chips output 100lm/W, 130lm/W, 150lm/W.
  • Tight die cast aluminum body has excellent heat dissipation, effectively prolongs lamp lifespan.
  • Smart modular design, high efficiency cooling, and more even light distribution.
  • No driver box, Lifud, Meanwell driver directly contact air, more effective heat dissipation.
  • No UV, no infrared, no mercury and other hazardous substances for health and environment.
  • Metal bracket allows flexible installation including ceiling-mounted, wall-mounted and ground.
Product Application
Ideal for outdoor and indoor lighting projects, including billboards, show windows, gardens, landscape, warehouses, security lighting, hall, construction building, road, street, bridge, highways, expressway, viaduct, crossroad, footpaths, squares, villa, campus, hotel, dock, yacht club, building lighting, factories, commercial lighting, shopping malls, supermarkets, railway tunnels, stadiums, trees, parking lots, building walls, display, backlight and so on.
Detailed Images

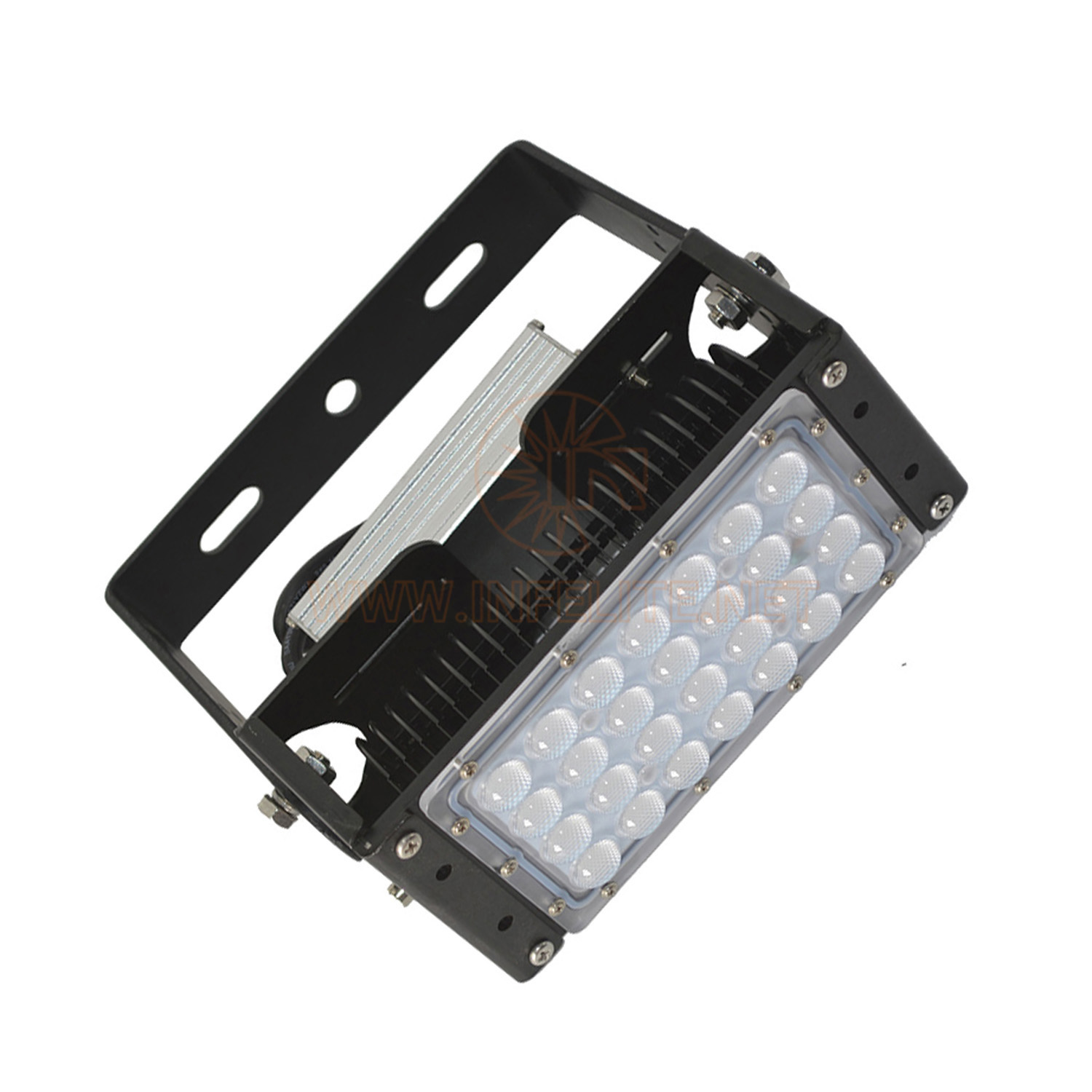

Detailed Product Image 1

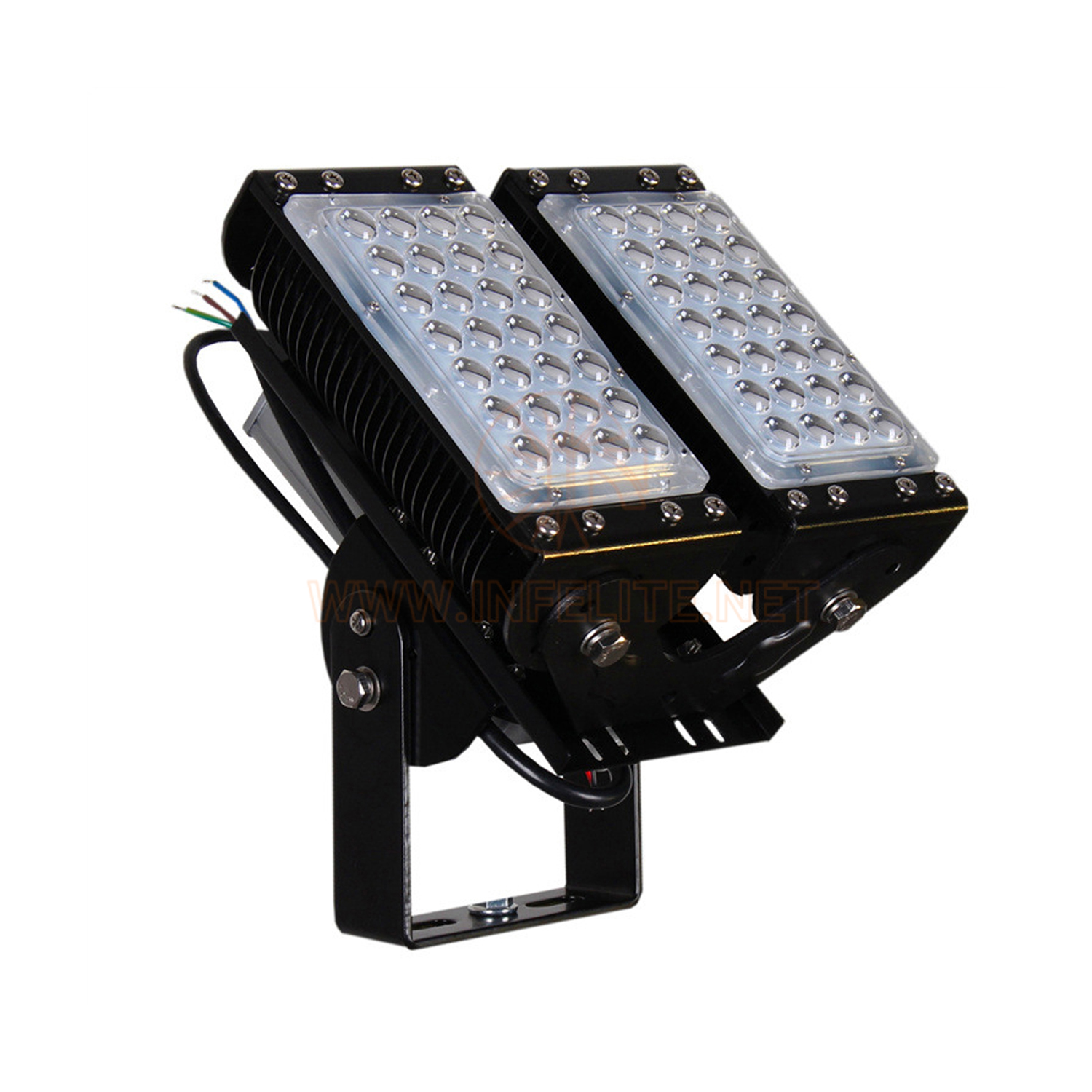

Detailed Product Image 2

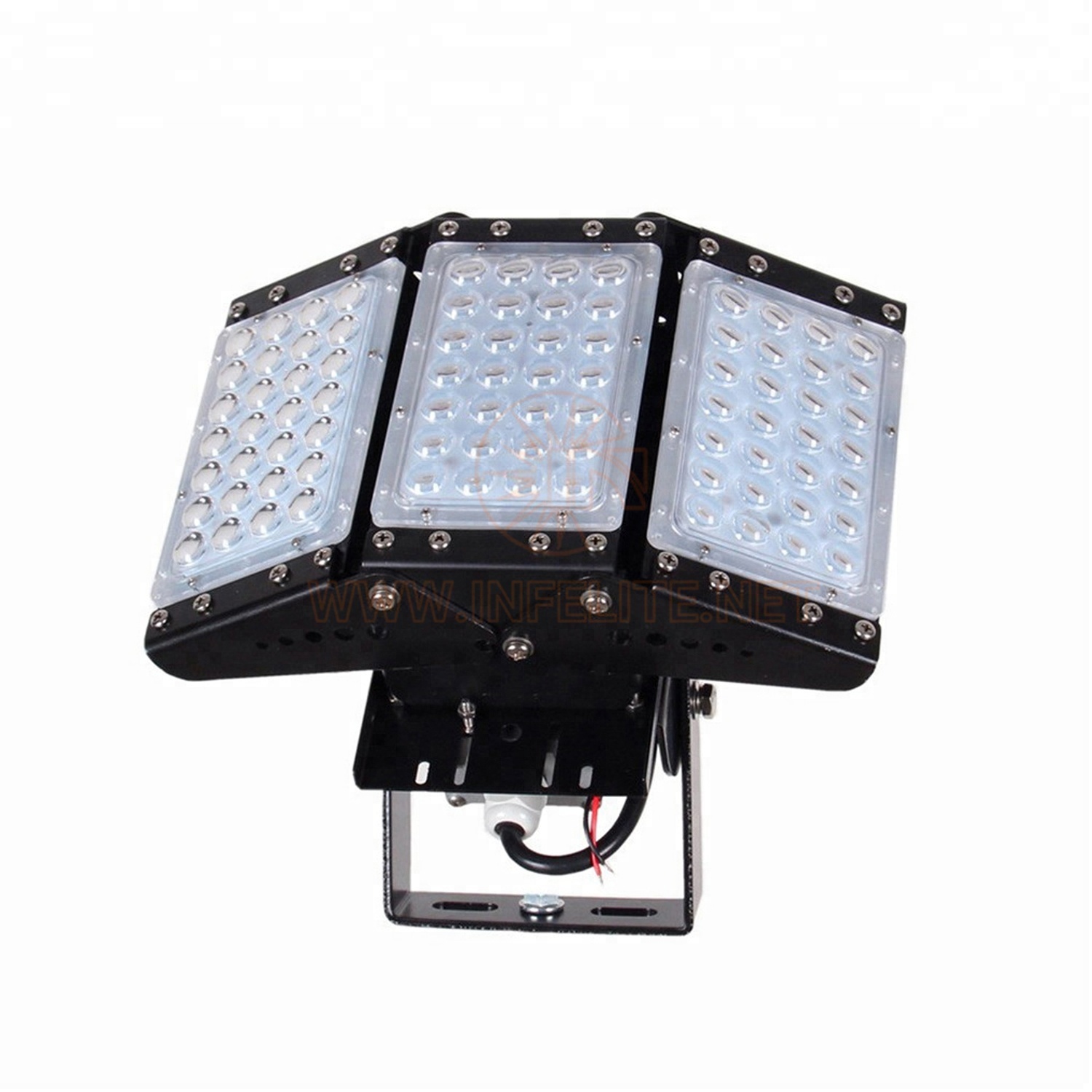

Detailed Product Image 3

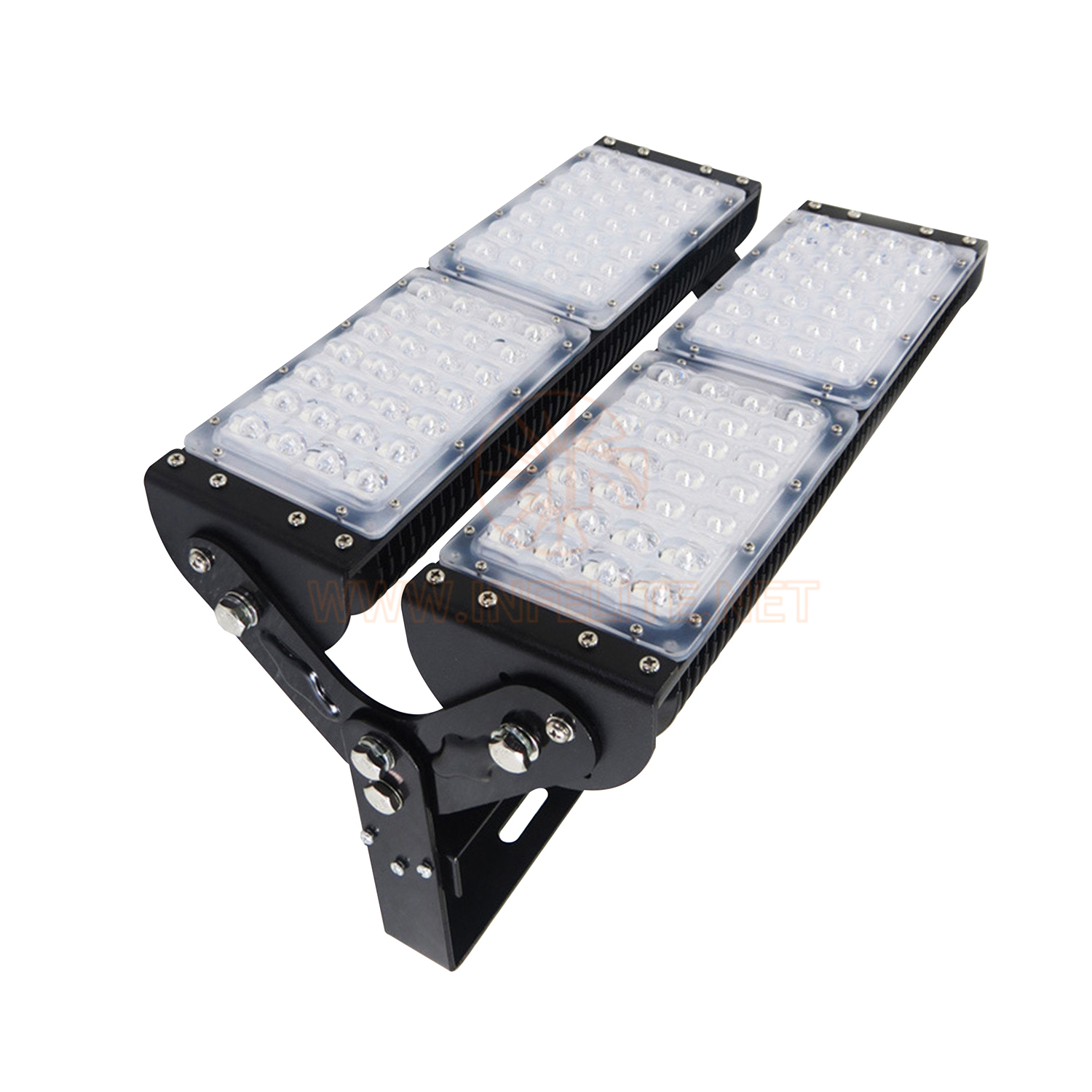

Detailed Product Image 4

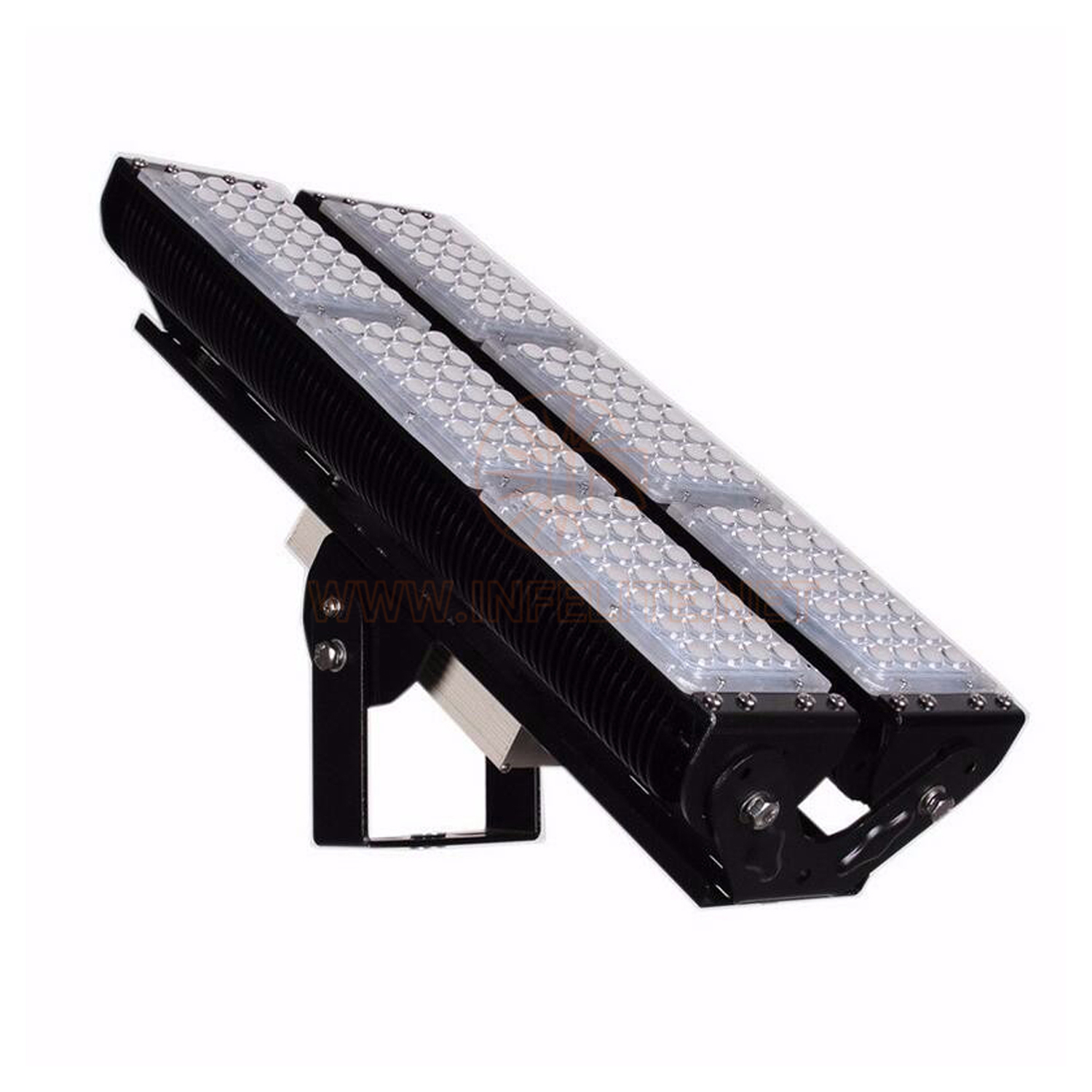

Detailed Product Image 5
Detailed Product Image 6

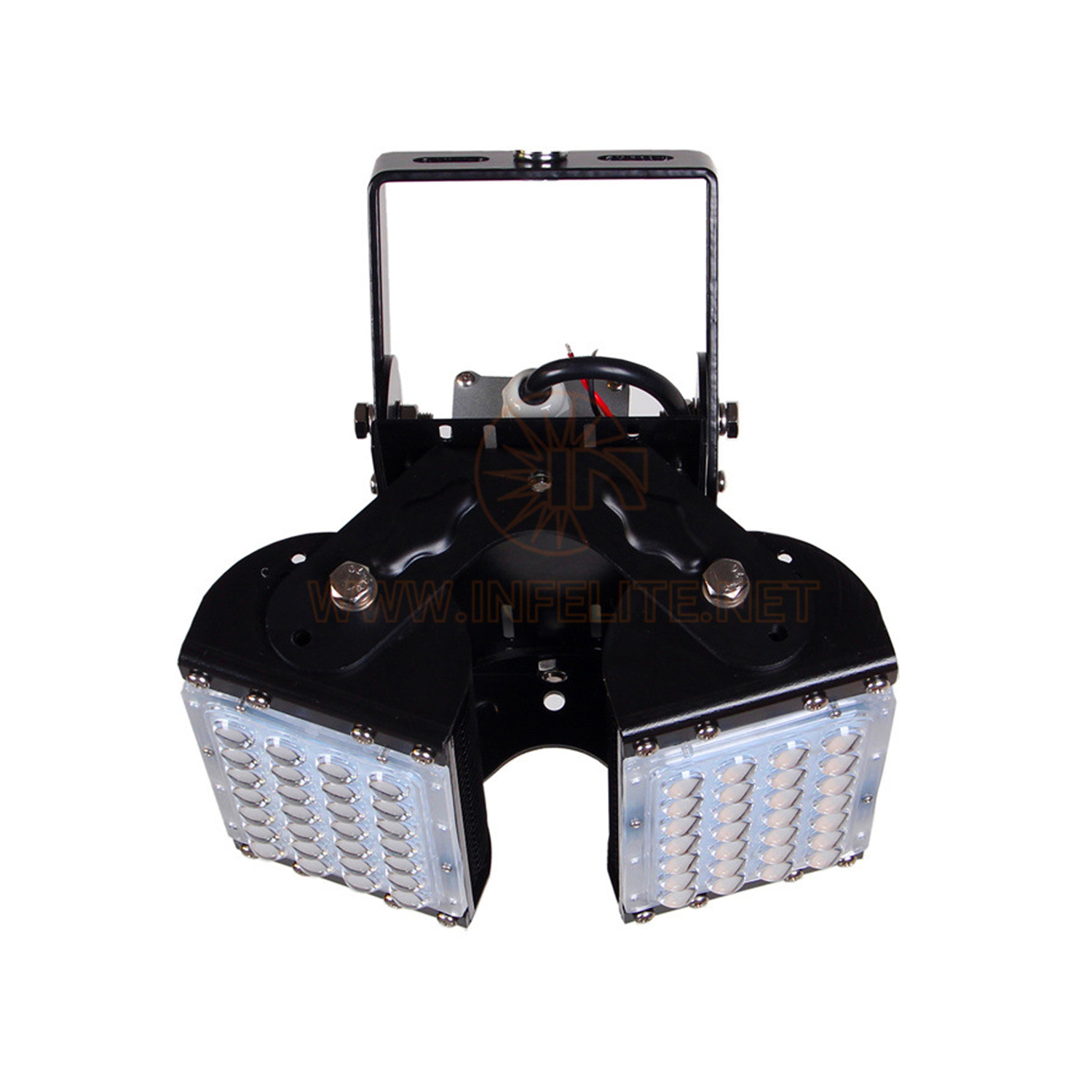

Detailed Product Image 7

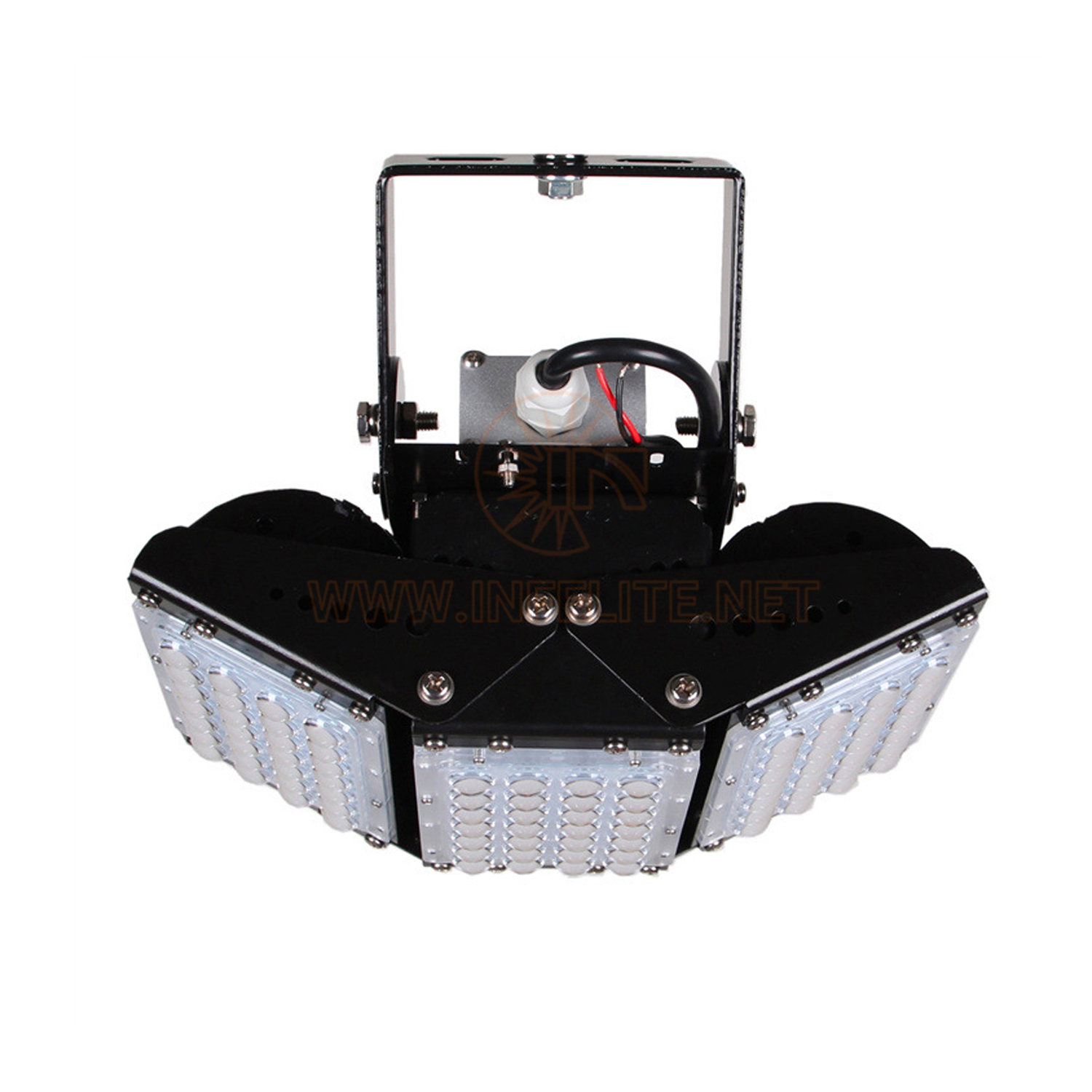

Detailed Product Image 8

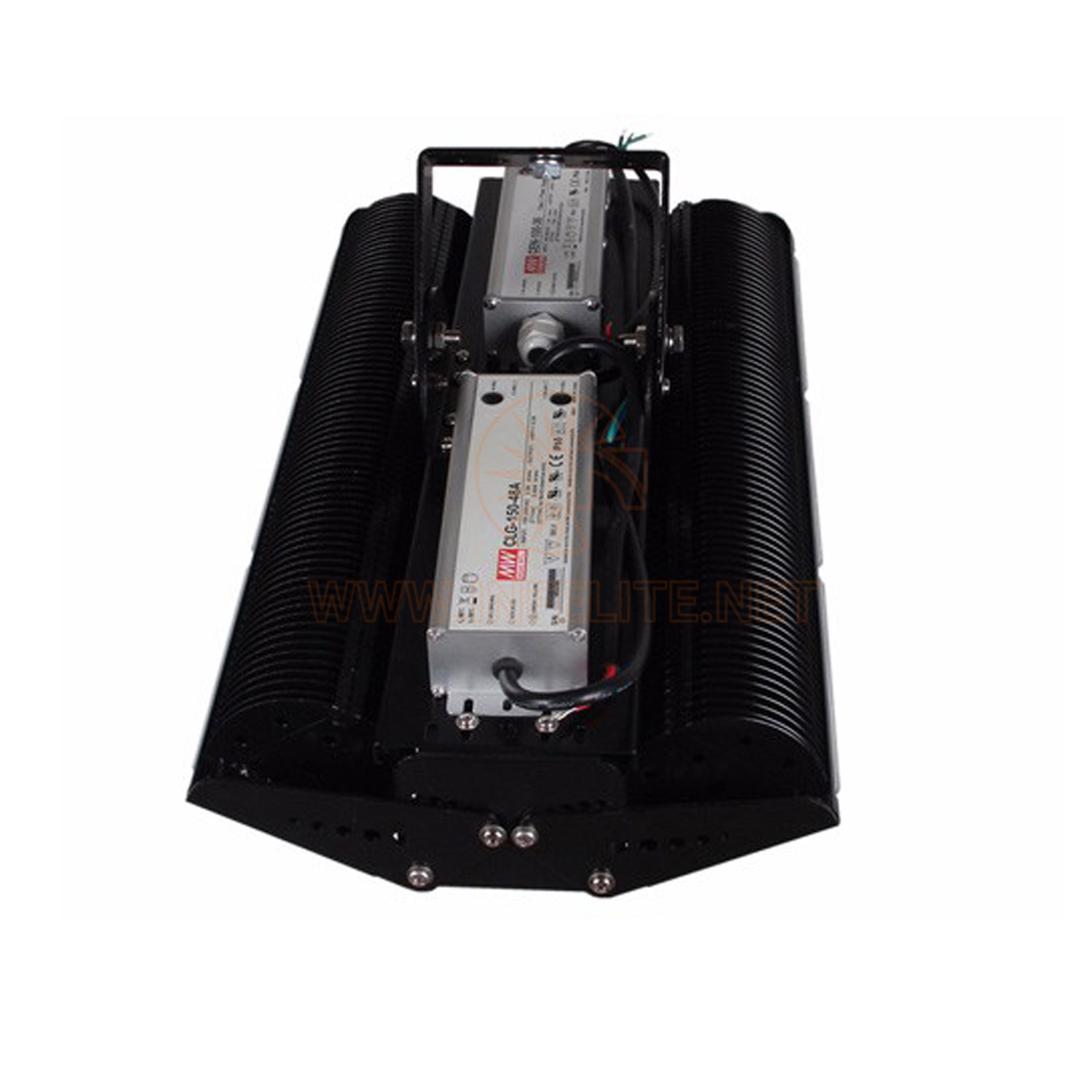

Detailed Product Image 9
Packaging Details

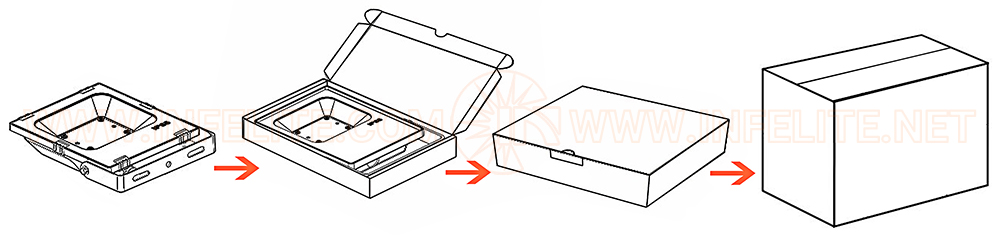

Packaging Details Image
  • Modular adjustable ip65 3030 led flood light 150w, unit size: W315*L279*H214mm.
  • Pkgs. size: 370*290*H:230mm, G.W: 6.56kg, 1pc/carton.
  • Pkgs. content: 1x LED flood light, 1X steel bracket, K3K inner box, K=K outer Carton.
  • Support your logo printed on lamp body or packing box for your brand marketing.
Payment & Shipping
  • Payment method: credit card, e-checking, T/T, western union, moneygram, L/C, paypal.
  • Shipment method: air express, sea freight, railway to europe or appointed by the buyer.
  • Leading time: 1~2 days for the lamps in stock, 4-12 days for OEM order or bulk order.
  • Delivery time: express: 3-7 days, sea freight: 30-35 days, railway to europe: 20-25 days.
Payment and Shipping Logistics
Production Factory
Welcome To Visit And Investigate Our Factory!
Our factory is an innovative & experienced manufacturer of LED commercial lighting fixtures in China. With a complete industrial chain from the SMT workshop to the testing laboratory for the LED illumination field, our main products are produced strictly under the ISO9001:2008 quality management system and are approved with CE, RoHS, EMC, TUV, PSE, and SAA certifications.

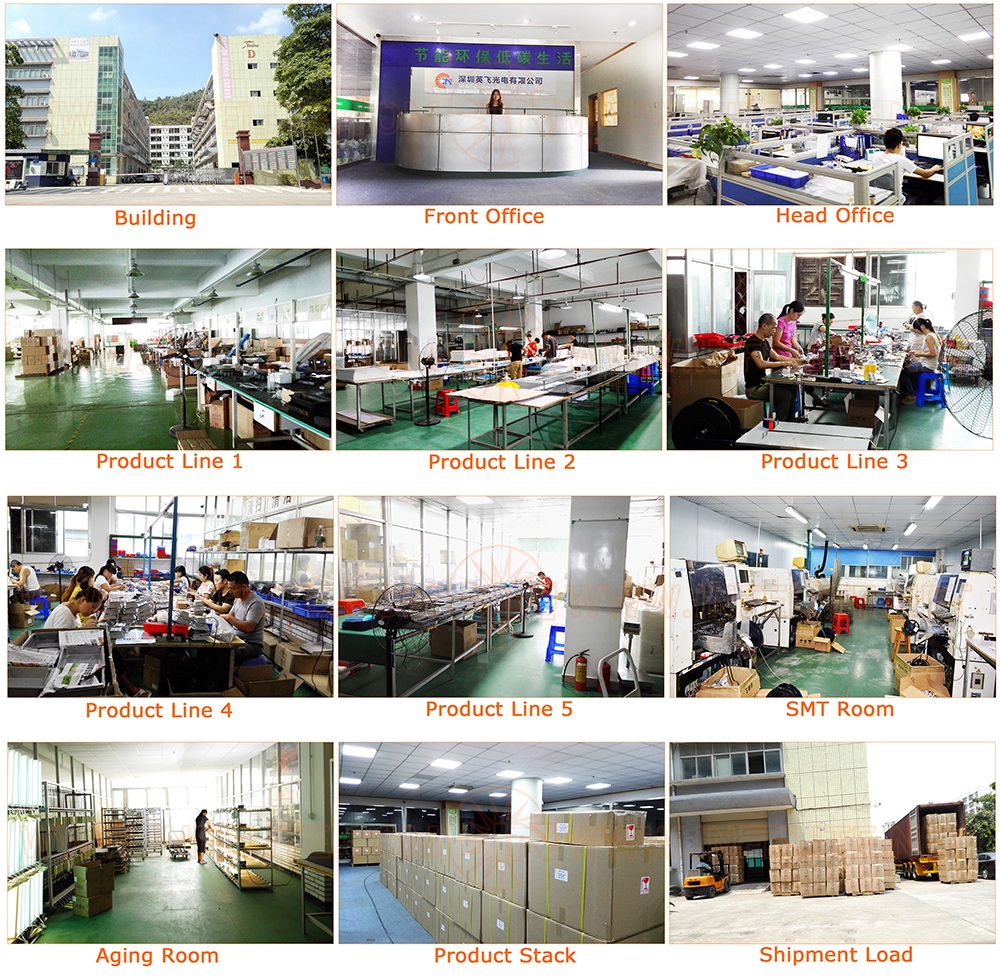

LED Production Factory Workshop
Certifications
Product Certifications
Our Services

1. Innovative Customized Solutions

We provide high-quality LED lighting solutions for commercial sectors at competitive pricing, maximizing utility rebates and offering reasonable configurations. The innovative solutions involve new lighting fixture model design assistance, molding, photo-metric layout consulting, ROI analysis, and lighting solution audits. Having your logo printed on the packaging box or laser-marked on the products is fully supported.

2. Customized OEM & ODM Service

If our existing design does not satisfy your requirements, simply share your design request with us. We can easily adjust details such as lamp size, lumen output, lamp shape, or heat dissipation solutions to manufacture products matching your demands. We can deliver test samples in as fast as 7~10 working days, and the testing report for the samples is free.

3. 3 ~ 5 Years' Quality Warranty

Our quality management system is fully compliant with the ISO 9001:2008 standard. All manufactured products come with at least a 3-year limited warranty, with selected items featuring a 5-year limited warranty. If any item fails due to a quality issue within the warranty period, we can send a new replacement immediately via air freight if urgent, or include the replacement with your next order.
Frequently Asked Questions
What are the main applications of these modular LED floodlights?
They are ideal for both indoor and outdoor projects, including billboards, show windows, gardens, landscape, warehouses, security lighting, roads, bridges, highways, viaducts, tunnels, and parking lots.
Can the viewing and rotation angles of the light be adjusted?
Yes, the beam angle is adjustable between 60 to 260 degrees, and the mounting bracket can be rotated up to 270 degrees to ensure precise installation and lighting direction.
What certifications do these LED floodlights carry?
Our products are manufactured strictly under the ISO9001:2008 quality management system and are certified with CE, RoHS, EMC, TUV, PSE, and SAA.
What kind of warranty is offered on these floodlights?
We offer a 3 to 5 years limited quality warranty. If any quality issue arises during this period, we provide fast replacements via air freight or include them in your next order.
Do you support customized OEM and ODM requests?
Yes, we support full customization. You can customize the lamp size, shape, lumen output, logo printing, or laser markings. We can produce samples within 7 to 10 working days.
What brands of drivers and LED chips are used?
We use high-brightness, LM-80 listed SMD3030 LED chips and reliable waterproof drivers from renowned brands like Meanwell (ELG/HLG series) and Lifud.
