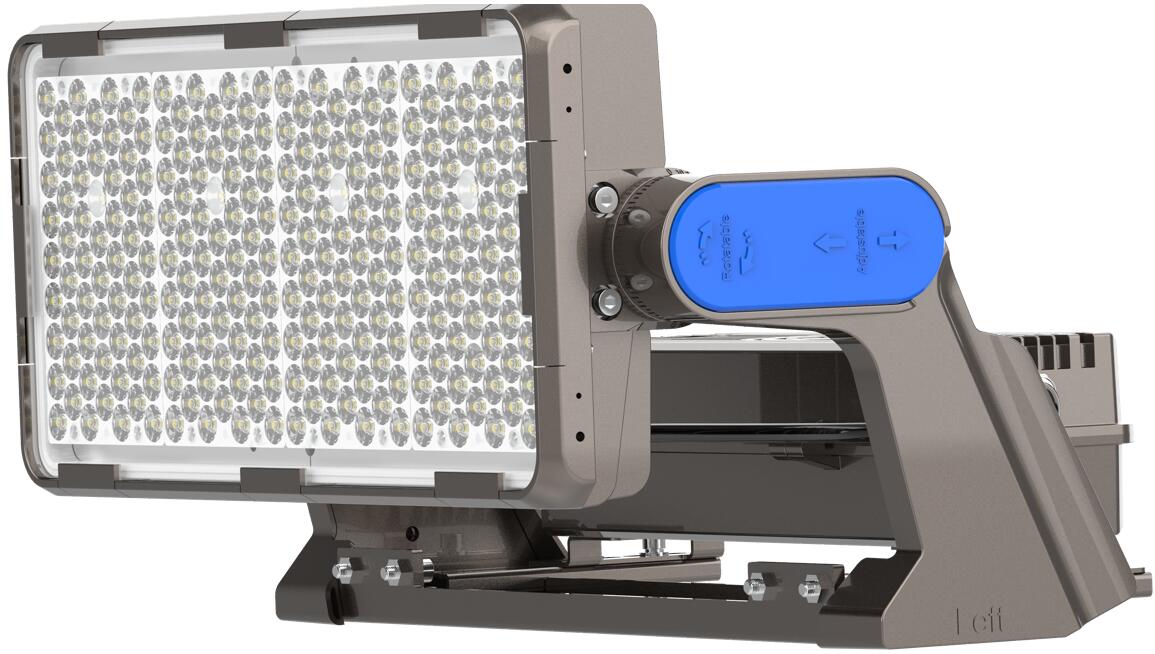

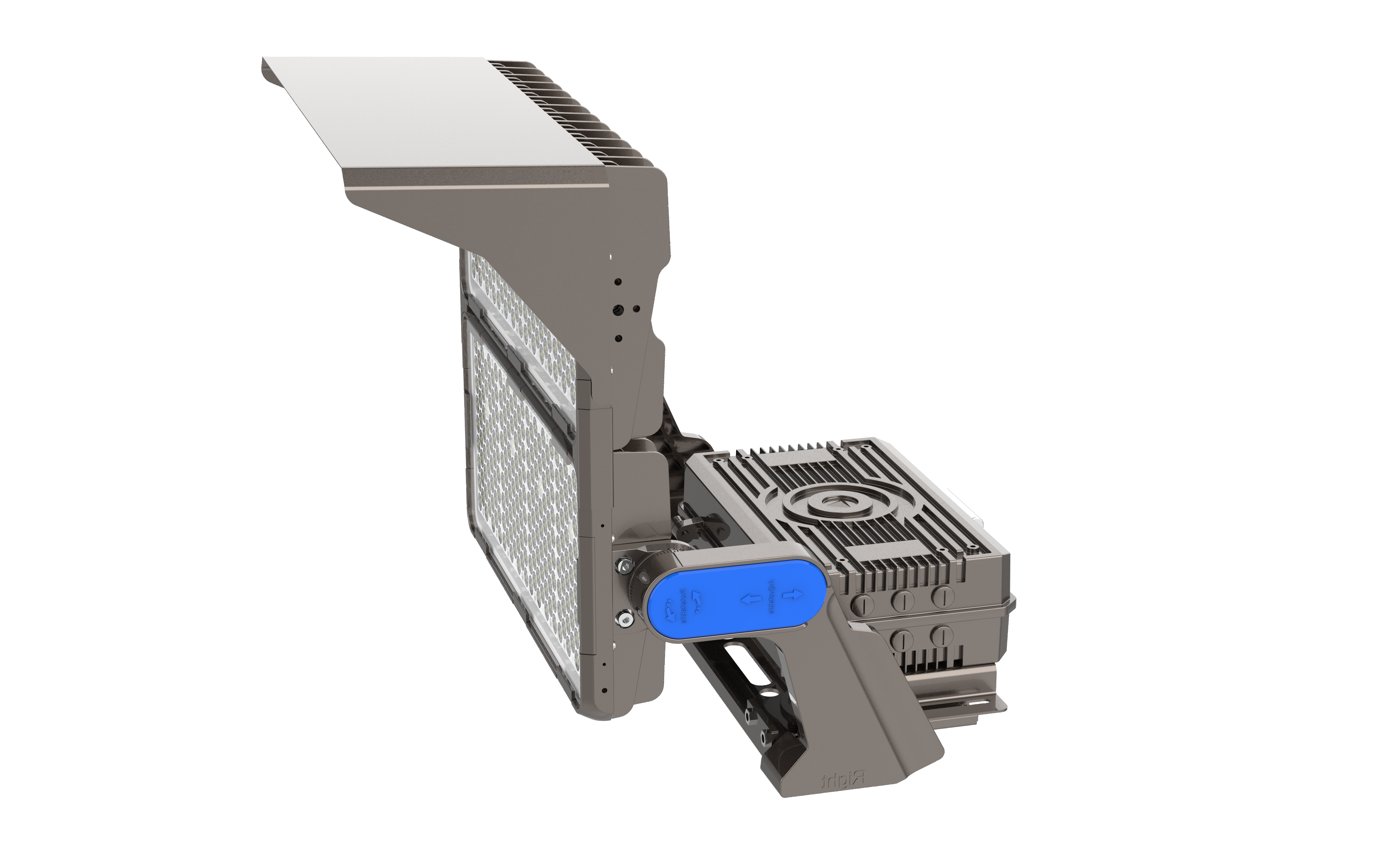

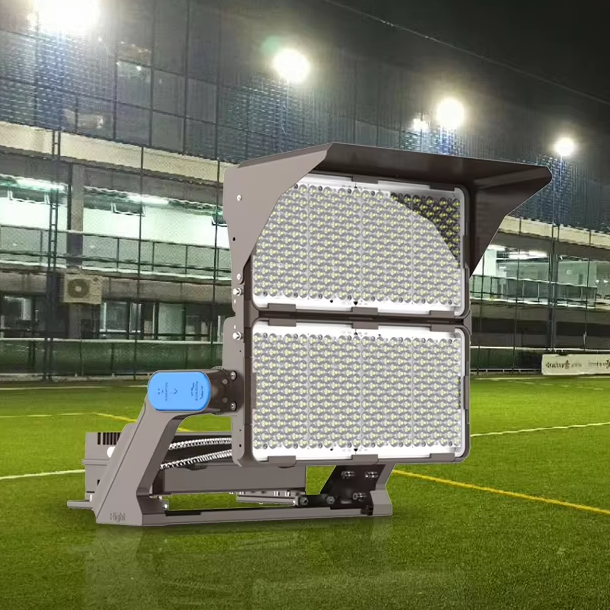

1500w Sport Lamp Ip66 Outdoor Football Tunnel Stadium Light Modular Led Flood Light 500w 600w 800w 1000w Aluminum
1500w Sport Lamp Ip66 Outdoor Football Tunnel Stadium Light Modular Led Flood Light 500w 600w 800w 1000w Aluminum
1500w Sport Lamp Ip66 Outdoor Football Tunnel Stadium Light Modular Led Flood Light 500w 600w 800w 1000w Aluminum
1500w Sport Lamp Ip66 Outdoor Football Tunnel Stadium Light Modular Led Flood Light 500w 600w 800w 1000w Aluminum
1500w Sport Lamp Ip66 Outdoor Football Tunnel Stadium Light Modular Led Flood Light 500w 600w 800w 1000w Aluminum
1 / 5
1500w Sport Lamp Ip66 Outdoor Football Tunnel Stadium Light Modular Led Flood Light 500w 600w 800w 1000w Aluminum
1500w Sport Lamp Ip66 Outdoor Football Tunnel Stadium Light Modular Led Flood Light 500w 600w 800w 1000w Aluminum
1500w Sport Lamp Ip66 Outdoor Football Tunnel Stadium Light Modular Led Flood Light 500w 600w 800w 1000w Aluminum
1500w Sport Lamp Ip66 Outdoor Football Tunnel Stadium Light Modular Led Flood Light 500w 600w 800w 1000w Aluminum
1500w Sport Lamp Ip66 Outdoor Football Tunnel Stadium Light Modular Led Flood Light 500w 600w 800w 1000w Aluminum

1500w Sport Lamp Ip66 Outdoor Football Tunnel Stadium Light Modular Led Flood Light 500w 600w 800w 1000w Aluminum

Send Inquiry

Product Description

Product Parameters
  • Application for sports field, wharf and airport etc.
  • Vertical rotation 0-270°, Horizontal expansion 100mm.
  • Die-case aluminum bracket, unique and elegant appearance.

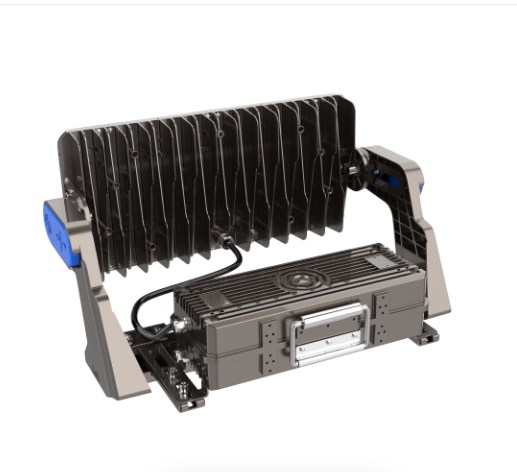

  • IP 66 independent driver box, separatedly installed with the heatsink to achieve excellent heat dissipation.
  • Using 4pin male & female connector for freely installation of driver box and heatsink.
Model Number HD-FL04-400W-500W-600W HD-FL04-800W-1000W-1200W HD-FL04-1500W
Wattage 400/500W/600W 800W/1000W/1200W 1500W
Lumen Flux(LM) 52,000Lm-84,000Lm 104,000Lm-168,000Lm 195,000Lm-210,000Lm
Efficiency(LM/W) 130-140
Input Voltage(V) AC100-277V/ AC200-480V/ AC277-480V
CCT 3000K/ 4000K/ 5000K/ 5700K
Beam Angle(°) 10°/ 15°/ 20°/ 30°/ 40°/ 60°/ 90°/ 120°/ P40°NB/ P40°MB/ P40°WB/ A60°
IP Rating IP66
Fixture Dimension(mm) 618.5*355.2*605.6mm 618.5*607.8*605.2mm 772*588*570mm
Light Source Samsung, Lumileds
Driver HDe, Inventronics, Moso
Warranty(Year) 5-Year
IK Rating IK08
OEM/ODM Acceptable
Details Images

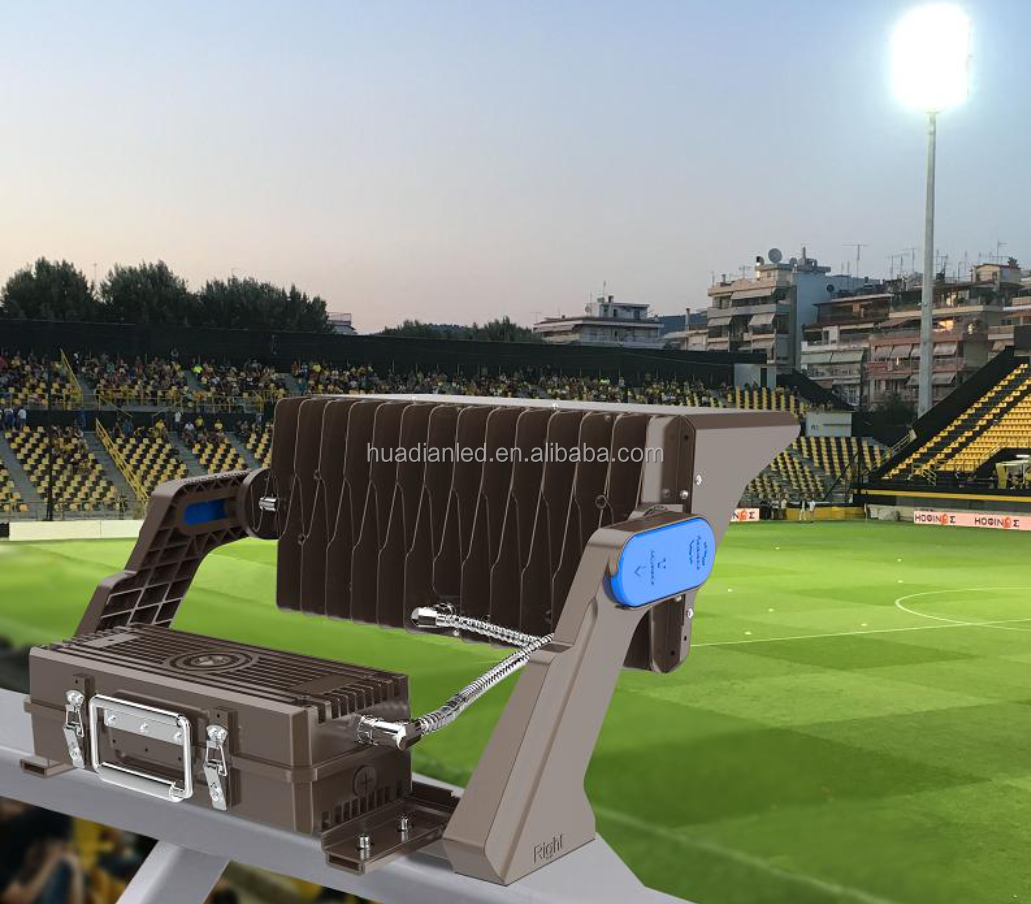

Product Detail 1

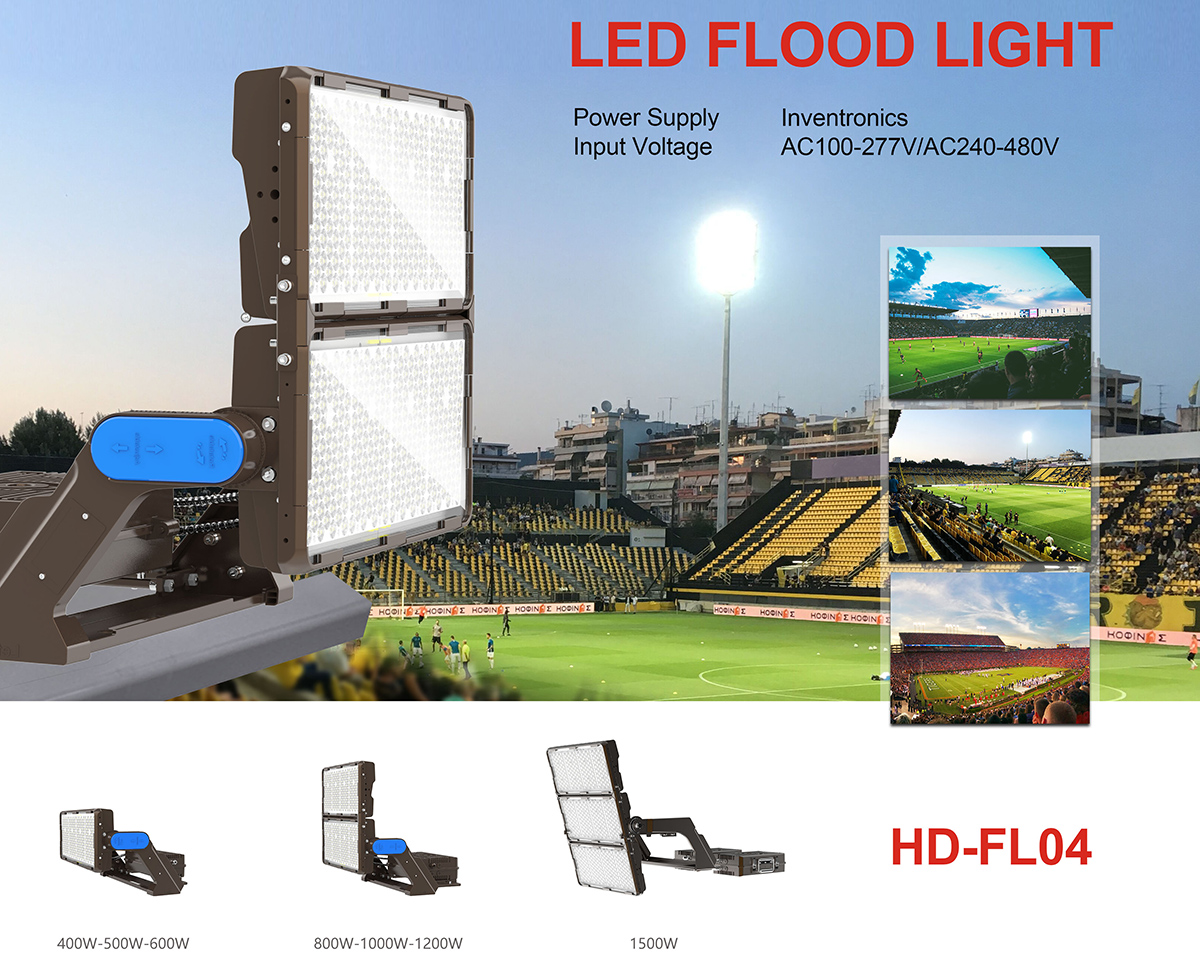

Product Detail 2

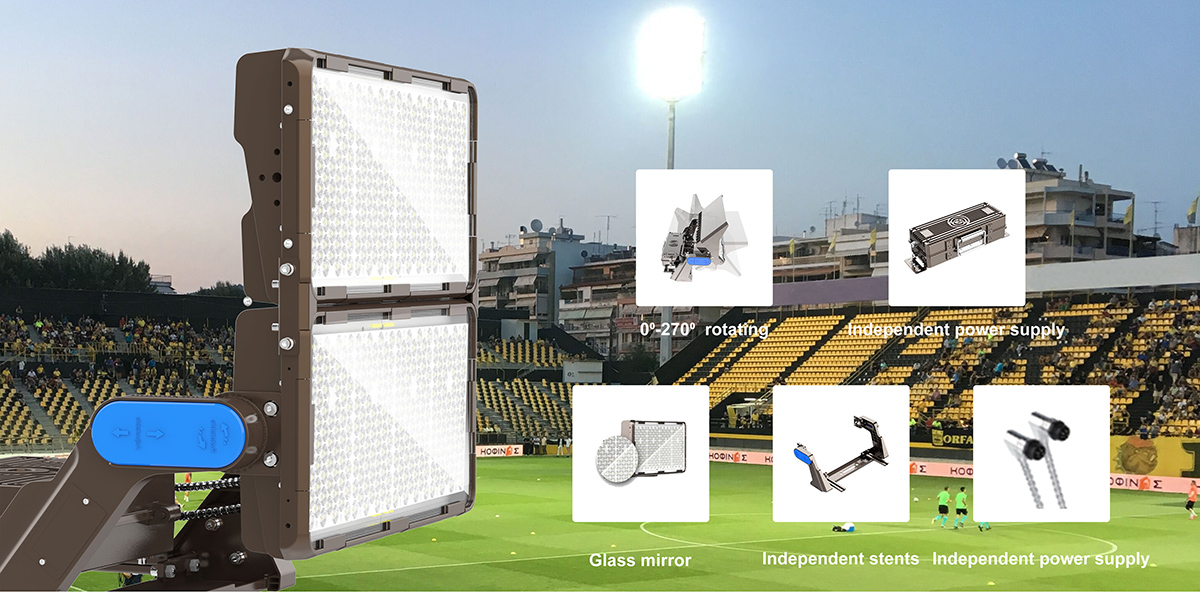

Product Detail 3

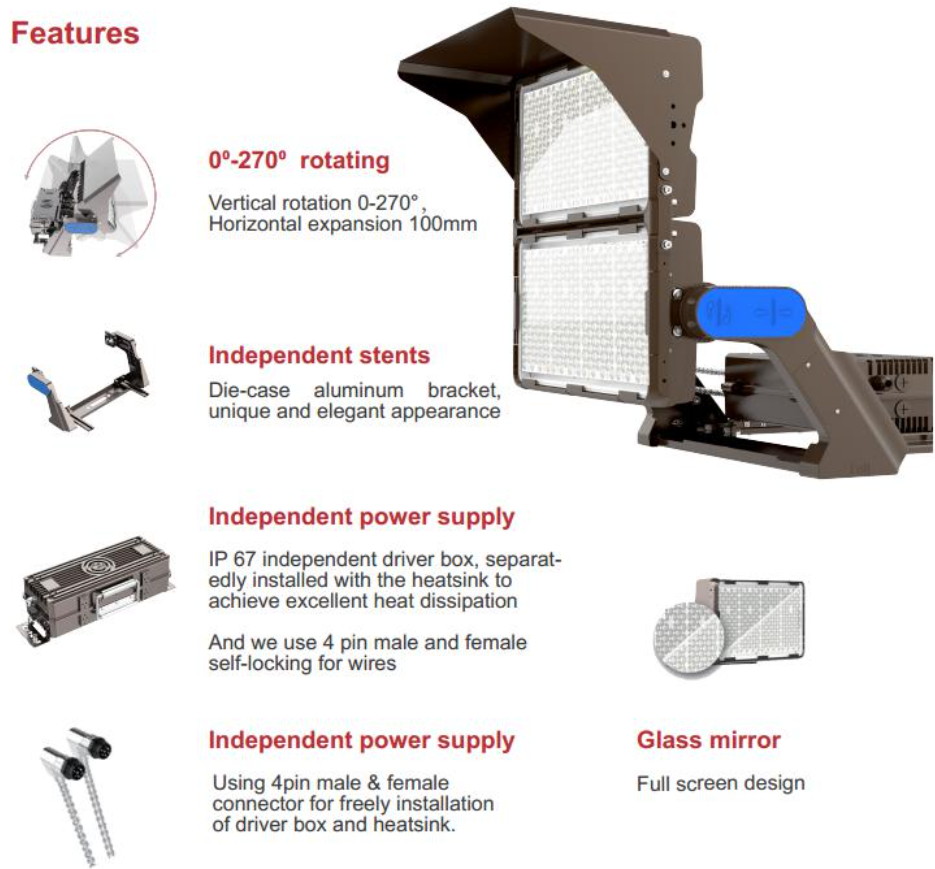

Product Detail 4
Product Dimension

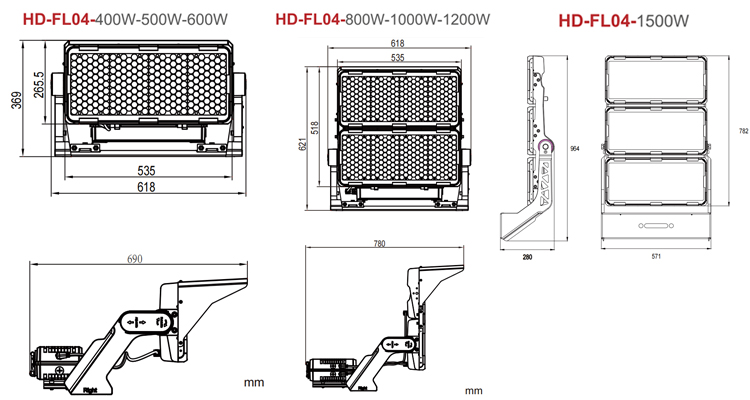

Product Dimensions
Application

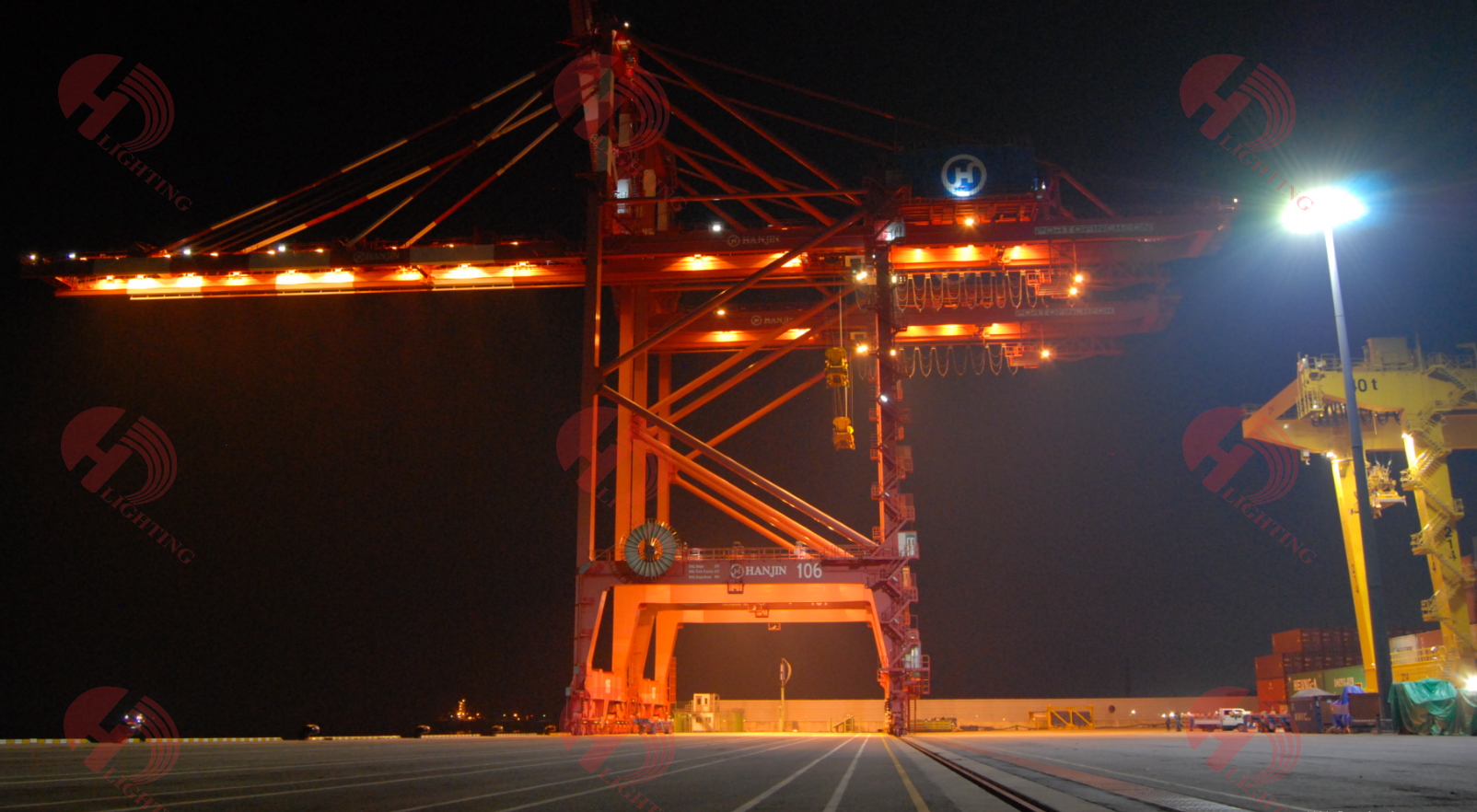

Application 1

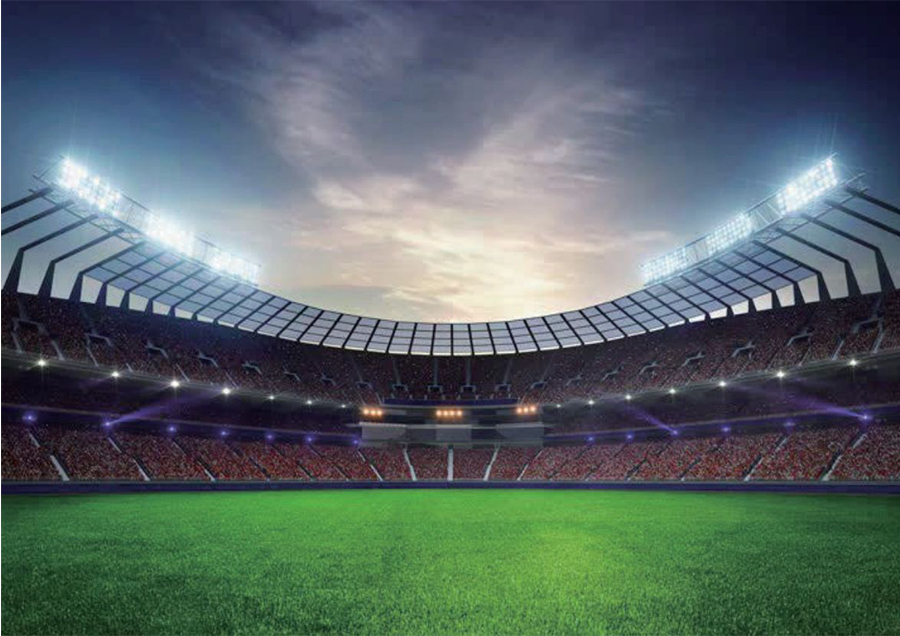

Application 2

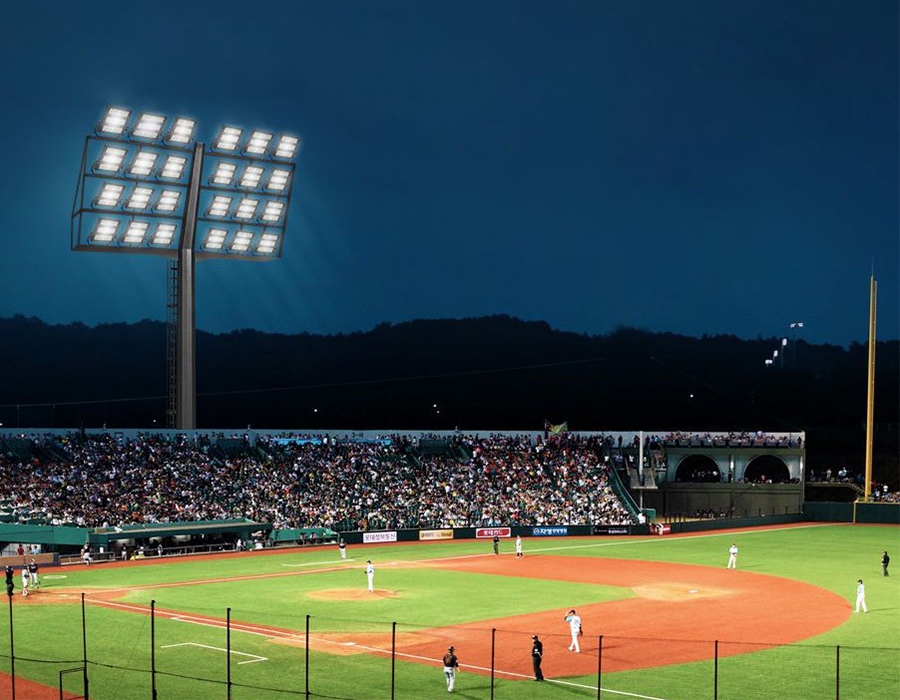

Application 3
Recommend Products
Recommend 1
Recommend 2
Recommend 3
Recommend 4
Recommend 5

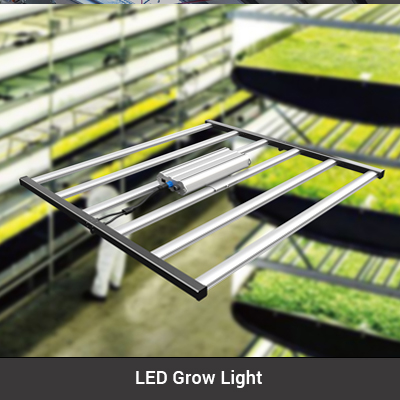

Recommend 6
Company Profile
OUR TEAM
Team
OUR WORKSHOP
Workshop
OUR EXHIBITION
Exhibition
Shipping & Payment
Shipping Info
FAQ

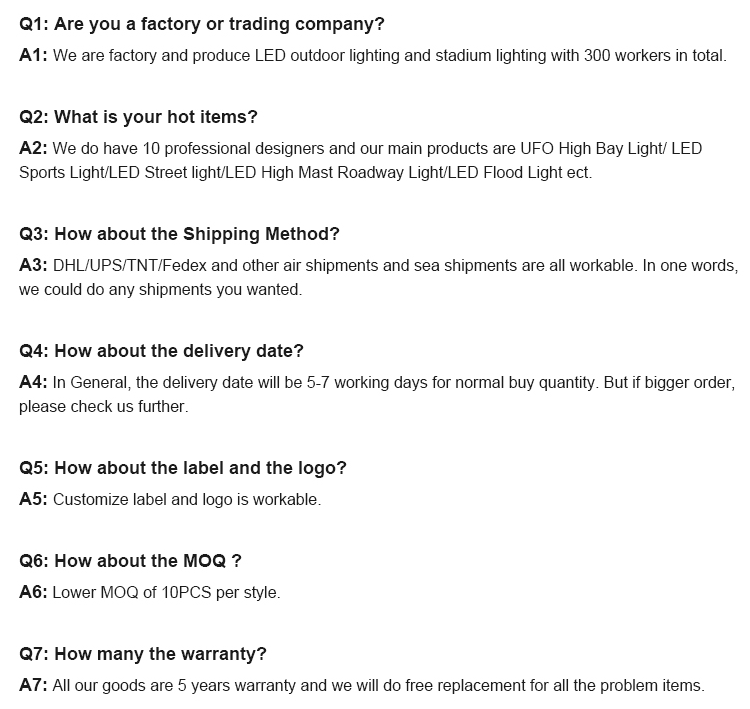

FAQ Visual
FAQ Detail
What are the main applications for these high-power floodlights?
These floodlights are primarily designed for large-scale outdoor areas such as sports fields, wharfs, airports, and industrial sites requiring high-intensity illumination.
Can the light direction be adjusted after installation?
Yes, the fixture supports vertical rotation from 0 to 270 degrees and horizontal expansion of 100mm, allowing for precise light targeting.
What is the waterproof and durability rating of the fixture?
The product features an IP66 rating for high-level water and dust resistance, along with an IK08 rating for impact protection.
What is the warranty period for this product?
We offer a 5-year warranty on our floodlights, supported by high-quality components from Samsung, Lumileds, and Inventronics.
Do you support custom options for specific projects?
Yes, we accept OEM and ODM orders to meet specific wattage, beam angle, and color temperature requirements for your projects.
